Product Detail

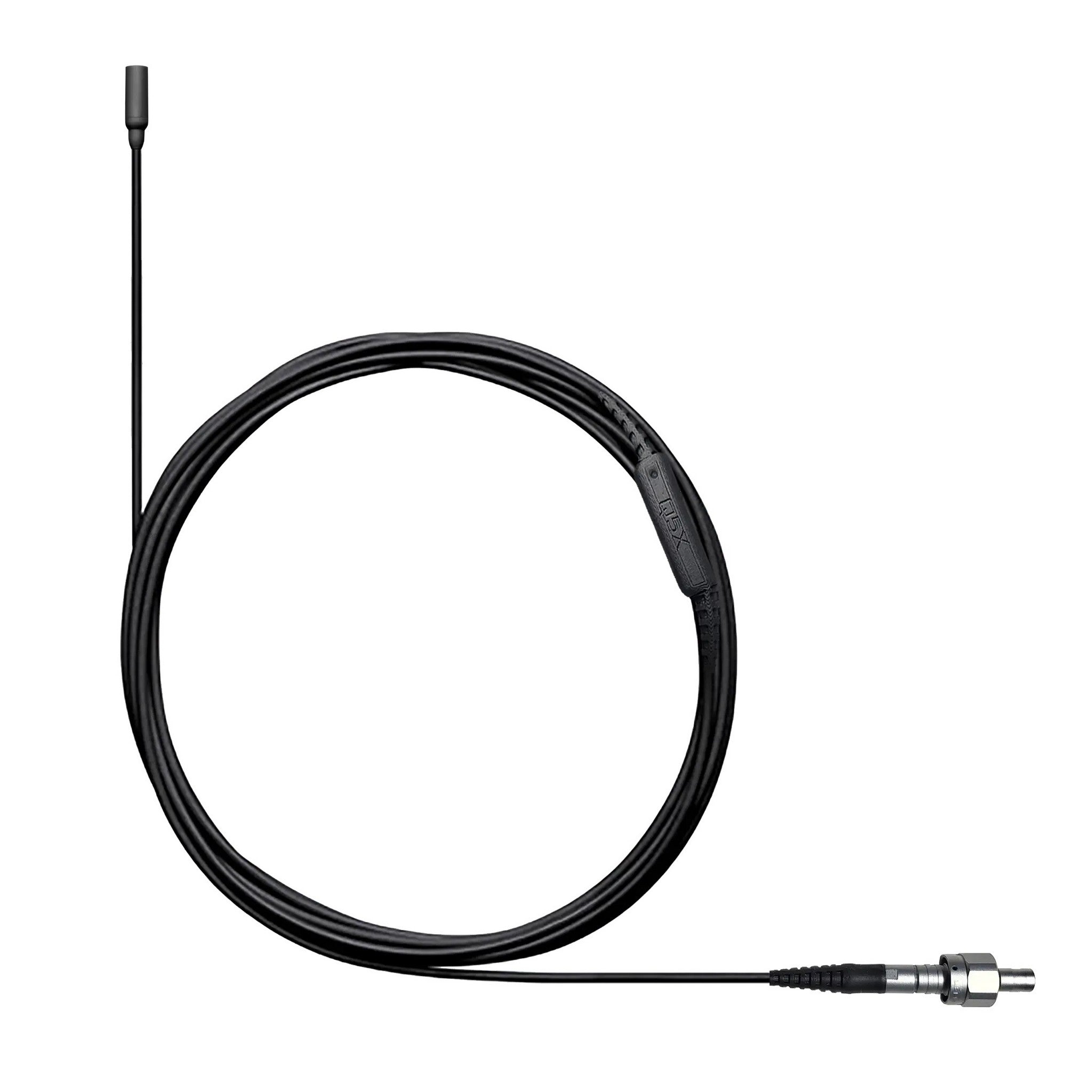

The Shure TL48B/O-LEMO6-A TwinPlex Omnidirectional Subminiature Lavalier Microphone is a top - notch choice for high - quality speech and dialogue recording in film and TV. Crafted with the help of leading audio pros, it has a mid - range boost for clear, crisp sound. Its small size lets you hide it in costumes or wear it on the skin, without any loss in audio quality. This is a must - have for on - screen talent. The dual - diaphragm capsule captures your voice's full richness, whether you're inside or outside. The fixed frequency cap, with a hydrophobic lining, stands up to sweat and moisture, ensuring reliable performance. The medical - grade cable is durable and flexible, fitting well with costume designs. With the Shure TL48, forget about sweat, noise, and wear - and - tear issues. It guarantees high - quality audio every time.
**Key Features**
- Ideal for film and TV speech and dialogue
- Tailored mid - range boost for great performance
- Easily hidden in costumes or worn on the skin
- Comes with lots of accessories for secure mounting
- Paintable cap and mid - band boost for better dialogue
- Dual - diaphragm design for consistent off - axis sound
- Low self - noise and wide dynamic range
- Hydrophobic cap resists sweat and moisture
- Paintable 1.6 mm cable, kink - free
- Dual redundant ground in the cable for long life
**Specifications**
- Microphone Capsule: Dual - Diaphragm, Prepolarized Condenser
- Polar Pattern: Omnidirectional
- Frequency Response: 20 Hz to 20 kHz
- Sensitivity: - 45.0 dBV (5.62 mV) at 1 kHz
- Self - Noise (A - Weighted, Equivalent Acoustical): 24.5 dB SPL - A
- Signal - To - Noise Ratio: 69.5 dB
- Output Clipping Level: 3.0 dBV, 1 kHz at 1% THD, typical
- Maximum SPL: 142.0 dB SPL, 1 kHz at 1% THD, typical
- Dynamic Range: 117.5 dB typical
- Microphone Current Draw: 120 to 240 µA, typical
- Bias Voltage: Recommended Operating Voltage: 5 V DC
- Housing: Molded ABS
- Polarity: Positive pressure on diaphragm produces negative voltage on pin 3 with respect to pin 1
- Cable Diameter: 1.6 mm
- Cable Length: 66 in. (1.67 m)
- Net Weight with cable: 12.0 g (0.42 oz.)
**Package Contents**
- Shure TwinPlex TL48B/O - LEMO6 - A Lavalier Microphone
- LEMO Connector
- Assorted Mounting Accessories
- Paintable Fixed Frequency Cap
- 1.6 mm Medical - Grade Cable
Using the Shure TL48B/O-LEMO6-A Lavalier Microphone is easy. First, connect it to your audio device using the LEMO connector. You can either hide it in your costume or wear it directly on your skin. When hiding it, make sure it's placed close to your mouth for the best sound quality.
For outdoor use, the microphone's hydrophobic lining in the cap will protect it from sweat and moisture. But try to avoid getting it soaked in water. When indoors, it will work great in normal conditions.
When it comes to maintenance, keep the cable tidy and avoid kinking it. The paintable parts can be customized, but be careful not to let the paint get into the microphone. If you're not using the microphone for a long time, store it in a dry and cool place. And always use the recommended 5V DC bias voltage to keep it working properly.
