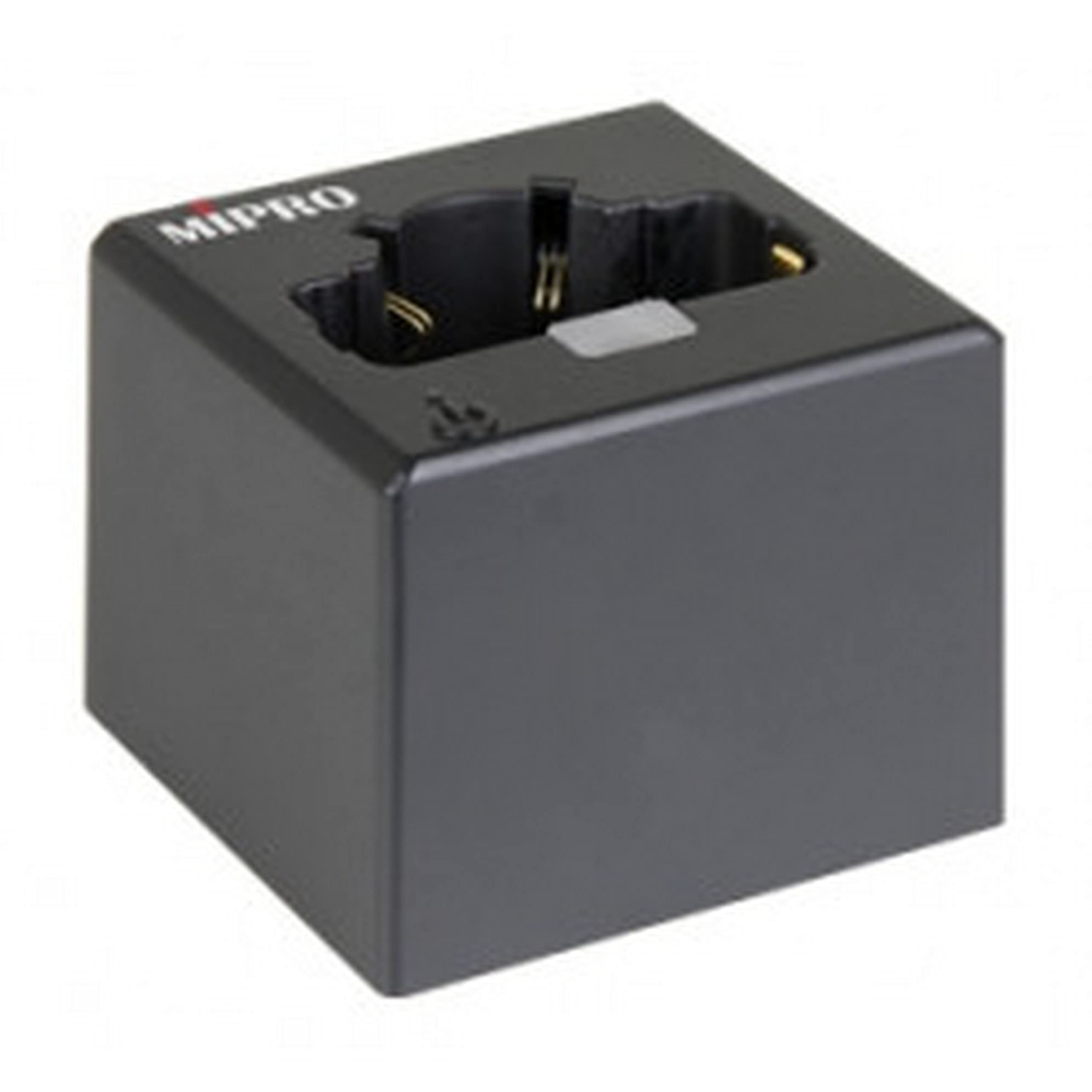

MIPRO MP-8 Battery Charger

The MIPRO MP-8 is an outstanding intelligent single well battery charger. It's specially crafted for MIPRO's rechargeable handheld and bodypack transmitters, as well as rechargeable bodypack receivers. This charger offers both quick and trickle charging options, ensuring efficient and safe power - up. It comes with a reverse polarity protection circuit, which prevents charging errors. You can easily check the precise charging status through clear indicators. Technical details include an input voltage range of DC 10 - 15 V / 1 A, compatible with ICR18500 1400 mAh 3.7V Li - ion Batteries. The charge method terminates by 20% regulation current, with a charge current of approximately 500 mA. It consumes around 600 mA at 12 V. Its dimensions are 92 × 74.5 × 87 mm (3.6 × 2.9 × 3.4 inches) and it weighs about 240 g (8.5 oz).

Using the MIPRO MP - 8 charger is easy. First, make sure your device's battery is the ICR18500 1400 mAh 3.7V Li - ion type. Connect the charger to a power source with a DC voltage between 10 - 15 V and a current of 1 A. Then, place your rechargeable handheld or bodypack transmitter, or bodypack receiver, in the charging cradle. You'll be able to see the charging status on the indicators. Remember, thanks to the reverse polarity protection circuit, you don't have to worry about incorrect connections. For maintenance, keep the charger in a dry and cool place. Avoid exposing it to extreme temperatures or moisture. If you notice any issues with charging, check the power connection and make sure the battery is properly placed in the cradle.
