Lectrosonics ACOAXTX 36-Inch Coaxial Antenna with SMA Connector, Block 21

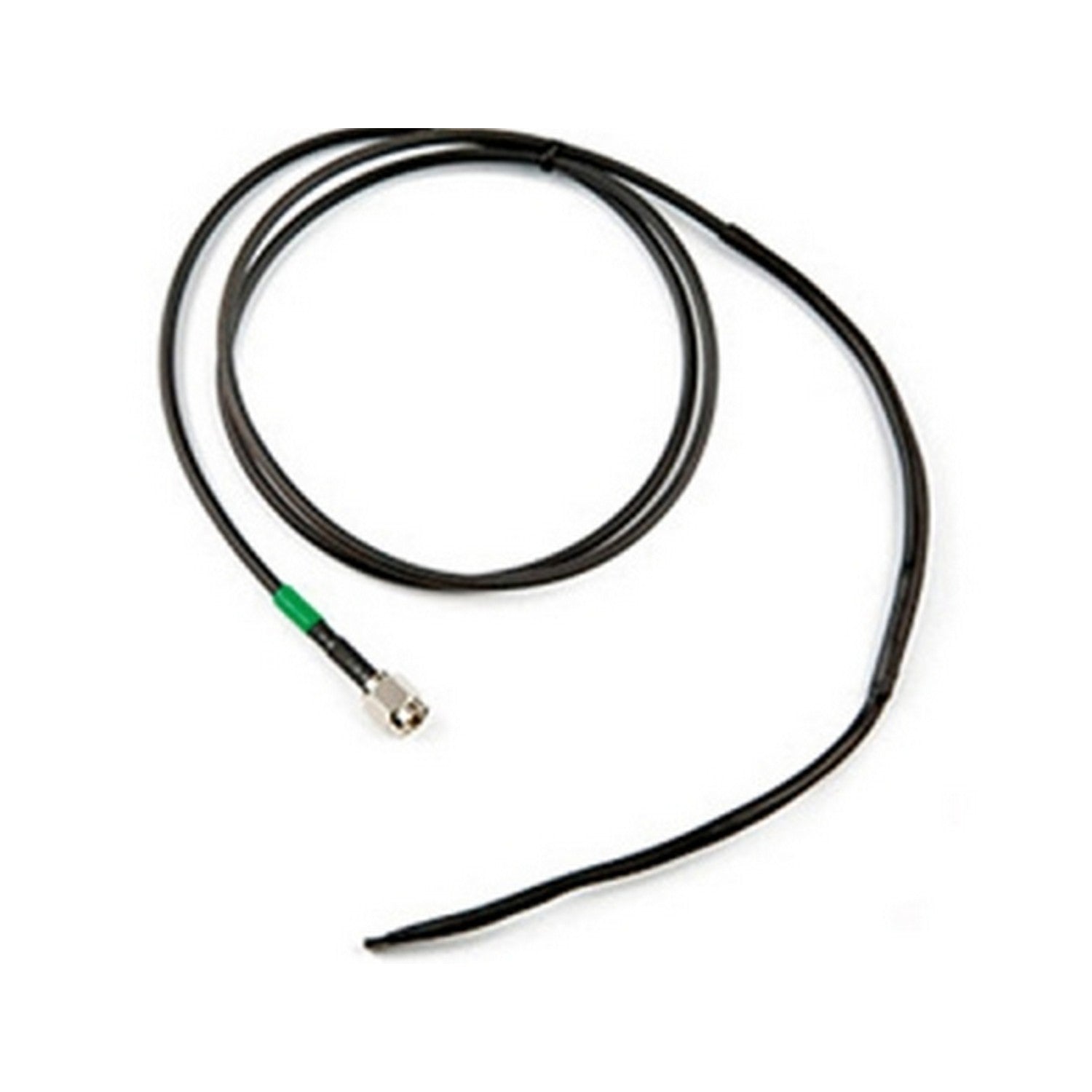

The Lectrosonics 36-Inch Coaxial Antenna with SMA Connector, Block 21, is a must - have for applications needing a small remote antenna. Measuring around 36 inches in total length, it features an SMA connector. The other end is cut to a 1/4 wavelength of the corresponding frequency block, marked with a color band and tag. This antenna is ideal when you need to separate equipment from its antenna. For instance, in a multichannel bag system, standard whip antennas can be less effective due to RF interference in the bag. With this coaxial antenna, you can place it on the bag strap. It's also great when clothing or gear might affect equipment performance. Just position it where it can work best. Remember, for maximum effectiveness, keep the antenna vertical, either pointing up or down. Also, position the antenna section away from metal surfaces. The cable's orientation doesn't impact the antenna's performance.

Using this Lectrosonics coaxial antenna is easy. First, find a suitable place to position it. If you're using it with a multichannel bag system, attach it to the bag strap. Make sure the antenna is in a vertical position, either pointing up or down. This is very important for getting the best performance. When placing the antenna, keep the antenna section away from any metal surfaces as this can affect its function. The orientation of the remaining cable doesn't matter, so you can arrange it however is convenient. As for maintenance, there's not much you need to do. Just keep it clean and avoid any physical damage. If you notice any problems with the performance, check the connections to make sure they're secure.
