Product Detail

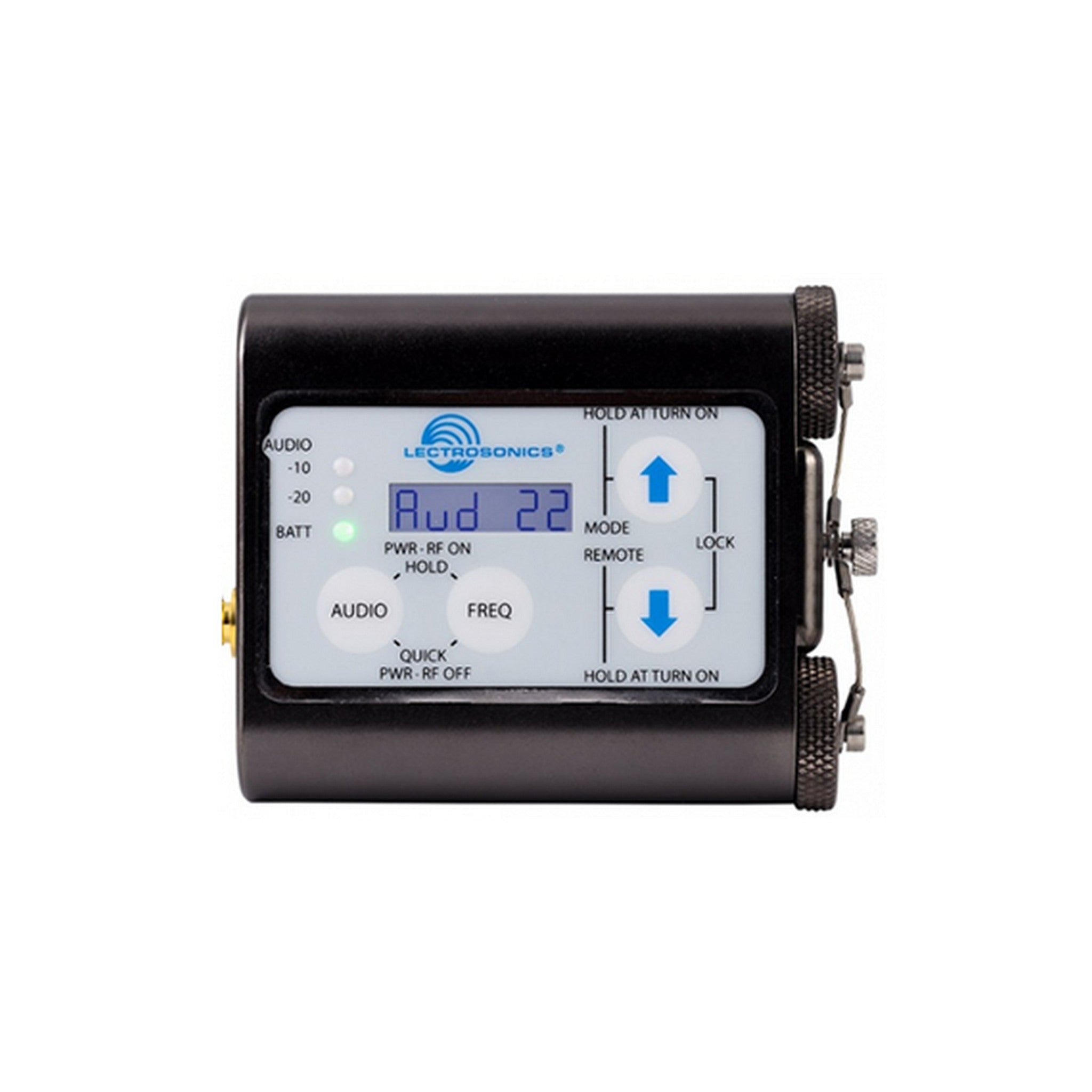

The Lectrosonics WM Digital Hybrid Wireless Beltpack Transmitter is designed for wet or dusty conditions. It features O - ring sealed battery compartments and input jack, a compression sealed antenna port, and gasket sealed control panel and back cover. With dual AA batteries, it offers double the operating time of earlier watertight designs. The large membrane switches, control panel, and highly visible backlit LCD make for an excellent user interface. Key features include selectable output power (50, 100 or 250 mW) for long battery life and wide operating range, a machined aluminum corrosion - resistant housing, water - resistant seals, an LCD interface with lockout option, programmable compatibility modes for various receivers, and servo bias input circuitry with selectable voltage. Technical specs cover a wide range of frequencies from 470.100 - 614.300 MHz, different channel spacings, and more. Accessories include 2 dual lithium AA batteries, a microphone, a belt clip, an O - ring kit, and a quickstart guide.
Using the Lectrosonics WM Digital Hybrid Wireless Beltpack Transmitter is easy. First, insert the two dual lithium AA batteries into the battery compartment. Make sure to follow the correct polarity. Then, connect your microphone or other audio source to the 2.5 mm locking micro audio input jack. You can use the control panel with its membrane switches to select the frequency, output power, and other settings. The backlit LCD will show you the current settings. When using it in wet or dusty environments, the water - resistant seals will protect the transmitter, but try to avoid long - term exposure to extreme conditions. For maintenance, check the O - ring kit regularly to ensure proper sealing. If the battery life starts to get short, replace the AA batteries. And when not in use, store it in a dry and cool place. Don't forget to refer to the quickstart guide for more detailed steps and troubleshooting tips.
