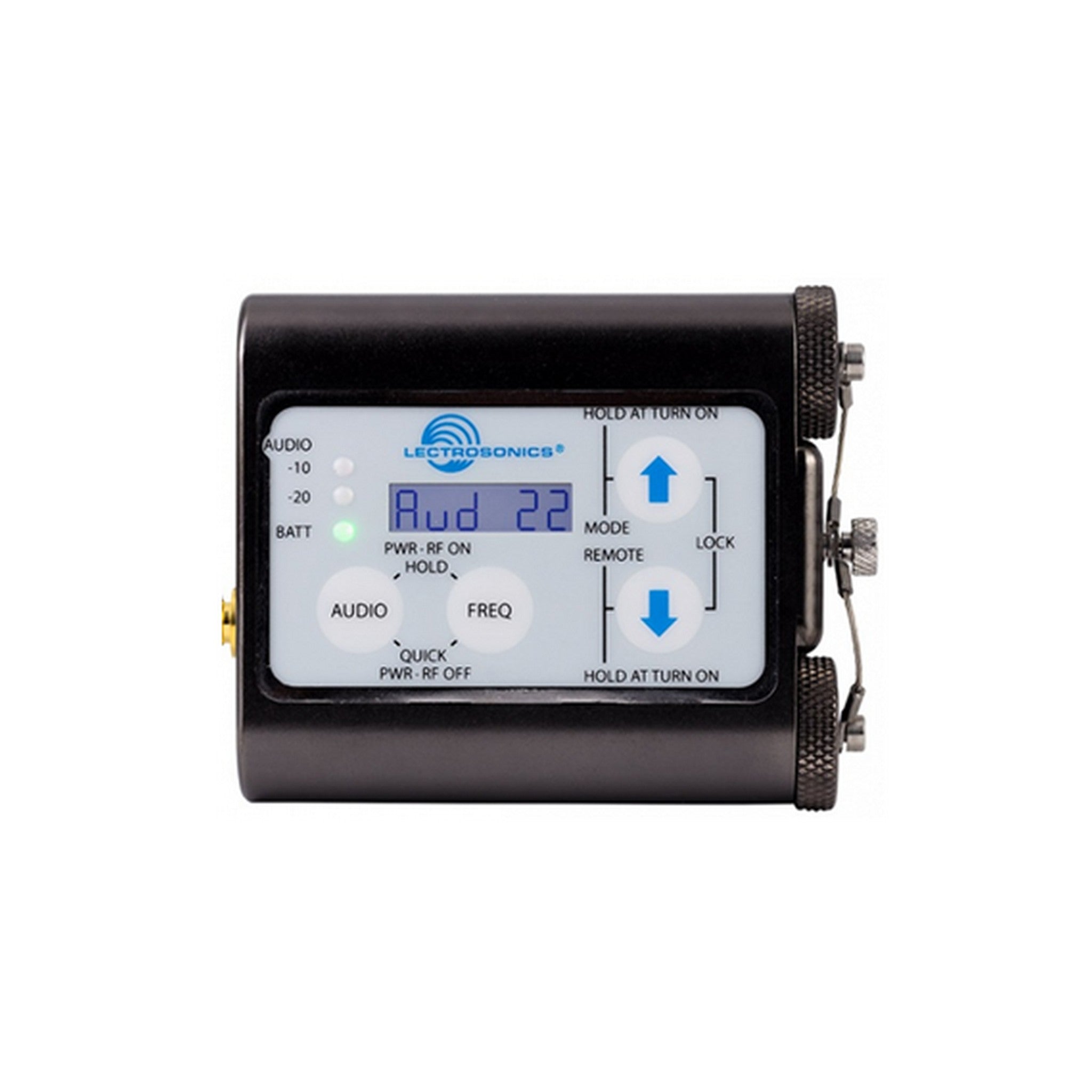

The Lectrosonics WM Hybrid Wireless Beltpack Transmitter, upgraded with the VT500 WATER Lavalier microphone, is a top - notch choice for audio transmission in wet or dusty environments. Its O - ring sealed battery compartments and input jack, compression sealed antenna port, and gasket sealed control panel and back cover make it highly durable. Dual AA batteries offer double the operating time compared to earlier watertight transmitter designs. The large membrane switches, control panel, and a bright backlit LCD provide an excellent user - friendly interface.
**Key Features**:
- You can select the output power (50, 100, or 250 mW) to either maximize battery life or get an excellent operating range.
- It has a machined aluminum, corrosion - resistant housing.
- The water - resistant seals allow it to be used in wet conditions.
- The LCD interface comes with a lockout option.
- There are programmable compatibility modes for use with a wide range of different receivers.
- The servo bias input circuitry has selectable voltage.
**Technical Specifications**:
- **Operating frequencies**: Multiple blocks from 470.100 - 614.300 MHz.
- **Channel Spacing**: 25 kHz or 100 kHz.
- **Frequency selection**: Via control panel membrane switches.
- **RF Power output**: 50, 100, or 250 mW.
- **Compatibility Modes WM**: Nu Hybrid, IFB, Mode 3.
- **Pilot tone**: Different deviations for different modes.
- **Frequency stability**: ± 0.002%.
- **Spurious radiation**: Complies with ETSI EN 300 422 - 1 v1.4.2.
- **Input levels vary for different types of mics and line level**: Dynamic mic, electret lavaliere mic, and line level inputs have specific pre - and post - limiting values.
- **Input impedance**: Different values for different input types.
- **Input limiter**: Soft limiter with a 30 dB range.
- **Bias voltages**: Selectable at 2V, 4V, or Off.
- **Gain control range**: 44 dB via panel - mounted membrane switches.
- **Modulation indicators**: Dual bicolor LEDs show modulation levels.
- **Controls**: A control panel with an LCD and four membrane switches.
- **Low frequency roll - off**: Adjustable from 35 to 150 Hz.
- **Audio Frequency Response**: 35 Hz to 20 kHz, +/-1 dB.
- **Total Harmonic Distortion**: 0.2% typical in Nu Hybrid mode.
- **Audio Input Jack**: 2.5 mm locking micro, threaded for stainless sleeve on WP connector.
- **Antenna**: A flexible, unbreakable steel cable.
- **Batteries**: 1.5 Volt AA (lithium recommended).
- **Weight**: 5.33 oz. (151 grams) with lithium batteries.
- **Housing Dimensions**: 2.98 x 2.55 x 0.77 inches (75.7 x 64.8 x 19.6 mm) including battery caps.
- **Emission Designator**: 110KF3E.
- **Included Accessories**: 2 Dual Lithium AA Batteries, 1 Microphone (Part #M152/WP), 1 Belt Clip (Part #WMBCSL), 1 O - ring Kit (Part #ORINGKIT/WM), 1 Quickstart Guide.
Using the Lectrosonics WM Hybrid Wireless Beltpack Transmitter is easy. First, insert two AA lithium batteries into the battery compartment. Make sure the compartment is sealed properly to keep out dust and water. Connect your microphone to the 2.5 mm locking audio input jack.
To select the frequency and output power, use the membrane switches on the control panel. The LCD will show you the settings. You can choose different output powers depending on whether you want to save battery or get a better operating range.
When using it in wet or dusty environments, thanks to its special seals, you don't have to worry too much about damage. But try to avoid long - term immersion in water.
For maintenance, regularly check the O - rings and other seals for wear and tear. Replace them if needed using the included O - ring kit. Keep the transmitter clean by gently wiping it with a dry cloth. If you're not using it for a long time, remove the batteries to prevent corrosion.
