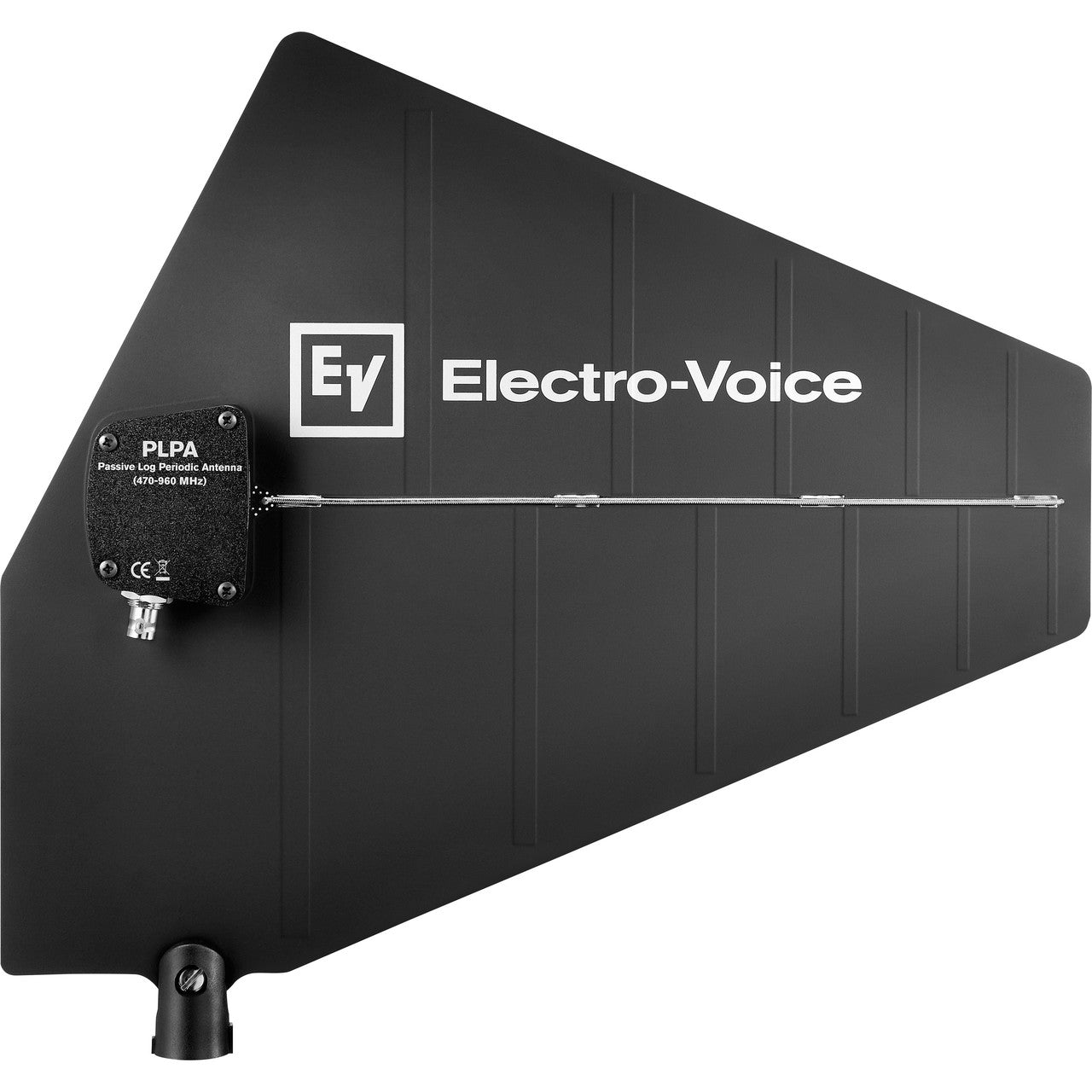

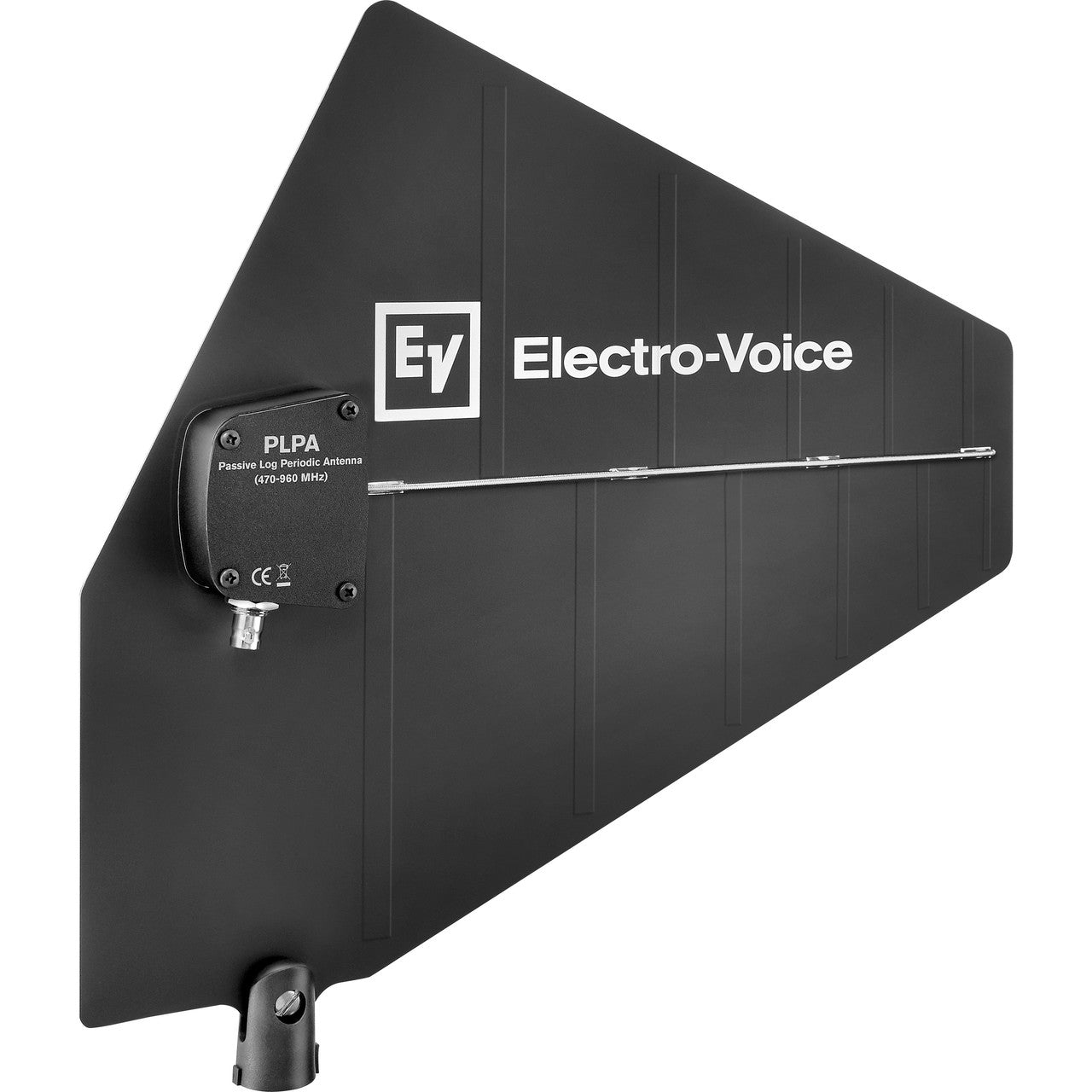

The Electro-Voice RE3 - ACC - PLPA is a top - notch passive directional antenna. It's designed to boost the desired RF signals while keeping out the unwanted ones. You can easily place it by mounting it on a standard threaded microphone stand. To extend your system's range, pair it with high - quality, low - loss coax cables like those from the Electro - Voice CXU grade, available in different lengths. You can further enhance the RF gain at the antenna by adding an RE3 - ACC - RFAMP RF booster using a short coax. Key features include extending system range, high efficiency with 10 dB of passive gain, and easy mounting on a standard threaded microphone stand. Technical specs: it's a passive UHF directional antenna with a frequency band of 470 to 960 MHz, an effective working angle of 100 degrees, 10 dB antenna gain, a BNC RF connector, black color, a net weight of 13.6 oz. (388 g), and a gross weight of 1 lb 13.6 oz. (840 g).
Using this Electro - Voice antenna is a breeze. First, find a good spot and mount the antenna on a standard threaded microphone stand. Make sure to connect it to high - quality, low - loss coax cables like the ones from the Electro - Voice CXU grade. This will help extend your system's range. If you want to increase the RF gain, just add an RE3 - ACC - RFAMP RF booster using a short coax. When handling the antenna, be gentle as it's a delicate piece of equipment. Keep it away from extreme temperatures and moisture to avoid damage. For maintenance, a simple wipe with a dry cloth every now and then will keep it in good condition. Check the connections regularly to make sure they're secure. That's all you need to know to get the most out of your antenna.
