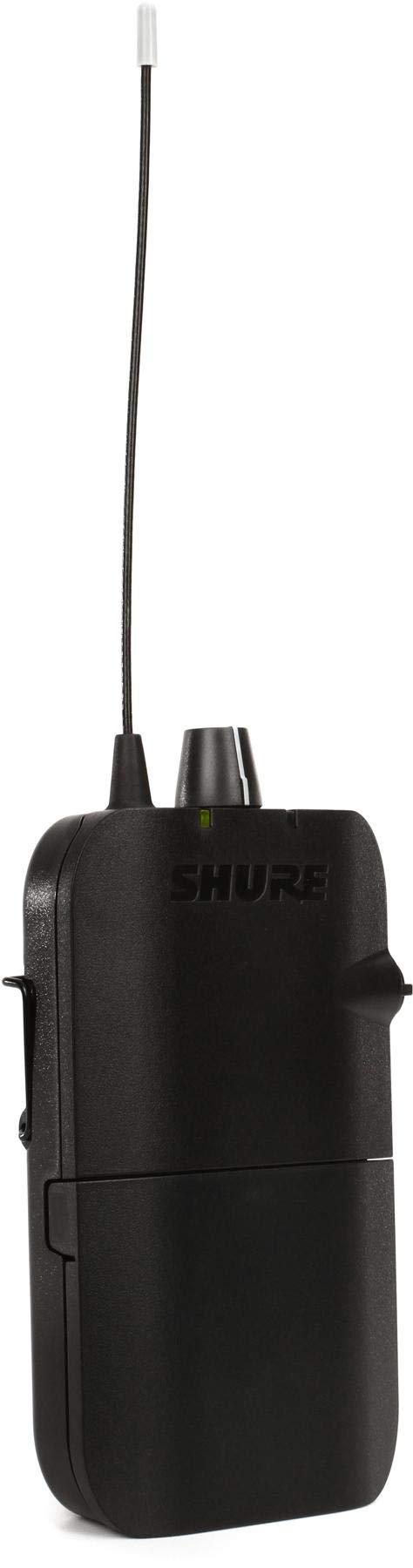

Shure P3R Wireless Bodypack Receiver, H20

The Shure P3R H20 Wireless Bodypack Receiver is a game - changer. Its sleek, lightweight, and tough design gives you reliable wireless freedom, covering every inch of the stage up to 300 feet (90 meters) away. Just plug in your earphones and tweak the controls to get your personalized wireless audio mix. With patented Audio Reference Companding and 24 - bit digital audio clarity, you'll enjoy the purest sound, with extremely low noise and no artifacts. Key features include one - touch frequency scan and automatic frequency selection for quick setup and IR sync with a P3T transmitter. MixMode technology allows you to adjust two independent monitoring mix levels. Stereo mode helps you fine - tune the left/right balance. The volume knob and mix control are super easy to adjust. The power save mode kicks in when earphones aren't connected, saving battery life. Battery status LEDs clearly show how much charge is left. Technical specs: Frequency Range: 518 - 542 MHz; Active RF Sensitivity (at 20 dB SINAD): 2.2 μV; Image Rejection: >90 dB; Adjacent Channel Rejection: >60 dB; Intermodulation Attenuation: >50 dB; Blocking: >60 dB; Audio Output Power 1 kHz @ <1% Distortion, Peak Power, @32 ohm: 80 mW (per output); Minimum Load Impedance: 16 ohm; Headphone Output: 3.5 mm (1.8 inch) stereo; Net Weight: 98 g (3.5 oz.) (without batteries); Dimensions (H × W × D): 110 × 64 × 21 mm (4.3 x 2.5 x 0.8 in.); Battery Life: 5 - 7 hours (continuous use) with AA batteries.

Using the Shure P3R H20 Wireless Bodypack Receiver is a breeze. First, insert the AA batteries into the receiver. Then, connect your earphones to the 3.5 - mm stereo headphone output. Turn on the receiver and use the one - touch frequency scan. This will help it automatically select a frequency and sync with the P3T transmitter via IR. Once synced, you can start adjusting your audio. Use the volume knob to set the overall volume, and the mix control to tweak the audio to your liking. With MixMode, you can adjust two different monitoring mix levels. And in stereo mode, you can balance the left and right audio. When you're done using the earphones, leave them disconnected, and the power save mode will activate to save battery. Keep an eye on the battery status LEDs to know when it's time to change the batteries. For maintenance, keep the receiver in a dry place. Avoid exposing it to extreme temperatures or humidity. Clean it gently with a soft, dry cloth. If you're not using it for a long time, remove the batteries to prevent corrosion.
