Product Detail

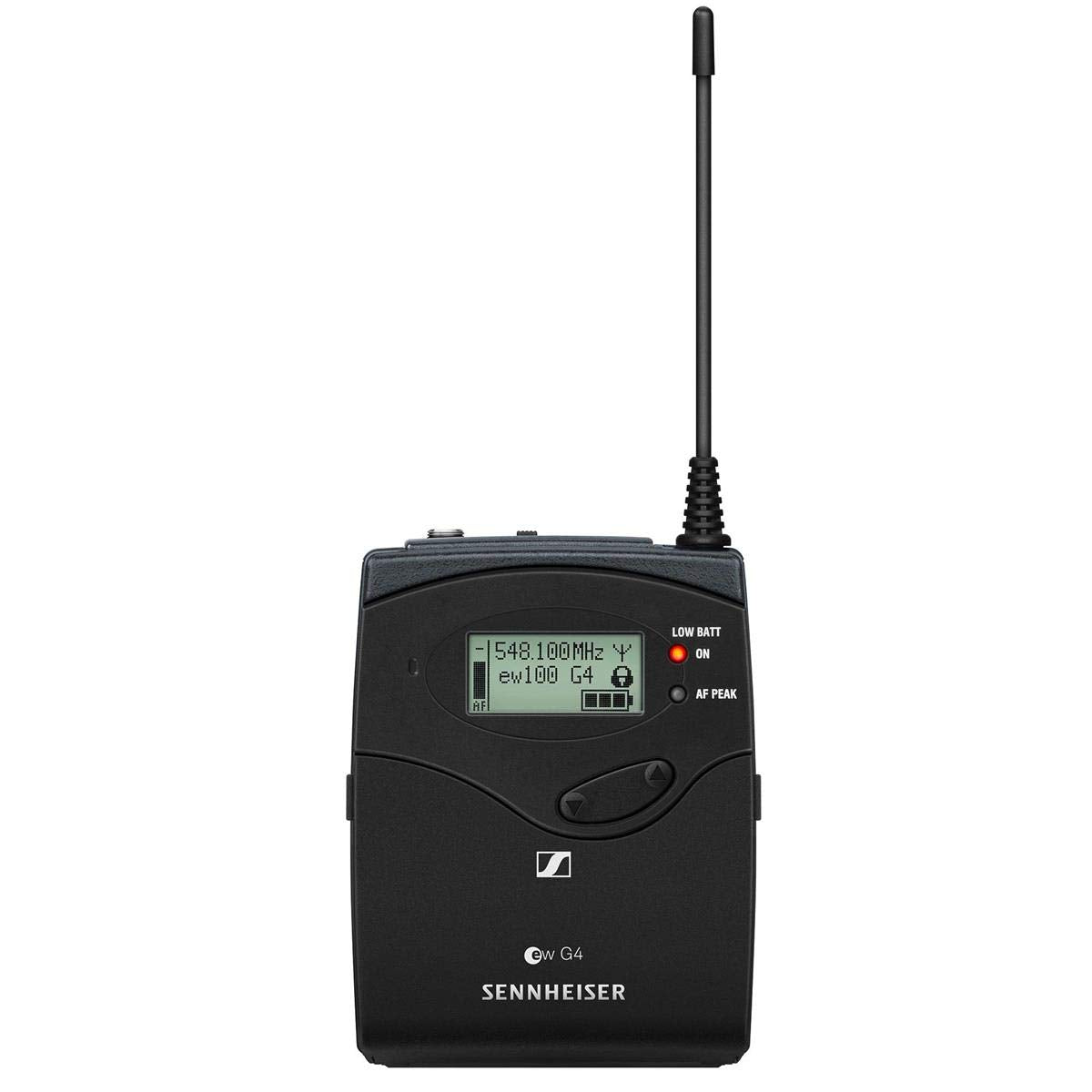

The Sennheiser SK 100 G4 - A1 is a sturdy bodypack transmitter designed for daily stage use with the Evolution Wireless G4 100 G4 systems. It offers multiple frequency options including A1 (470 - 516 MHz), A (516 - 558 MHz), and G (566 - 608 MHz). Key features include easy infrared - based wireless synchronization between the transmitter and receiver, fast frequency allocation for up to 12 receivers via new linking functionality, up to 20 compatible channels, a 42 - MHz bandwidth with 1680 selectable frequencies in a stable UHF range, a transmission range of up to 100 meters (300 feet), and high RF output power (up to 30 mW, depending on country regulations). Its technical specifications are also remarkable. It has dimensions of approximately 82 x 64 x 24 mm, an Sennheiser HDX compander, a total harmonic distortion of <= 0.9%, and a weight of about 160 g (including batteries). With a signal - to - noise ratio of >= 110 dBA, it ensures high - quality sound. It runs on 2 AA batteries (1.5 V) or a BA 2015 accupack, and has an operating time of typically 8 hours. The package includes the SK 100 G4 bodypack transmitter, 2 AA batteries, a quick guide, a safety guide, and a manufacturer declaration sheet.
Using the Sennheiser SK 100 G4 - A1 bodypack transmitter is quite straightforward. First, insert 2 AA batteries or a BA 2015 accupack to power it up. Make sure to follow the correct polarity as indicated inside the battery compartment. Then, synchronize it with the receiver via the infrared function. It's easy to do and allows for flexible wireless connection. When it comes to frequency allocation, use the new linking functionality to quickly set it up for up to 12 receivers. For the channels, you have up to 20 compatible ones to choose from. Just select the one that suits your needs. Keep in mind that the transmission range is up to 100 meters, so don't go too far from the receiver. As for maintenance, store it in a cool and dry place when not in use. The temperature range it can handle is from - 10 C to +55 C, so avoid extreme temperatures. Check the batteries regularly and replace them when the power is low. If you want to clean it, use a soft, dry cloth. And always refer to the quick guide and safety guide included in the package for more detailed information.
