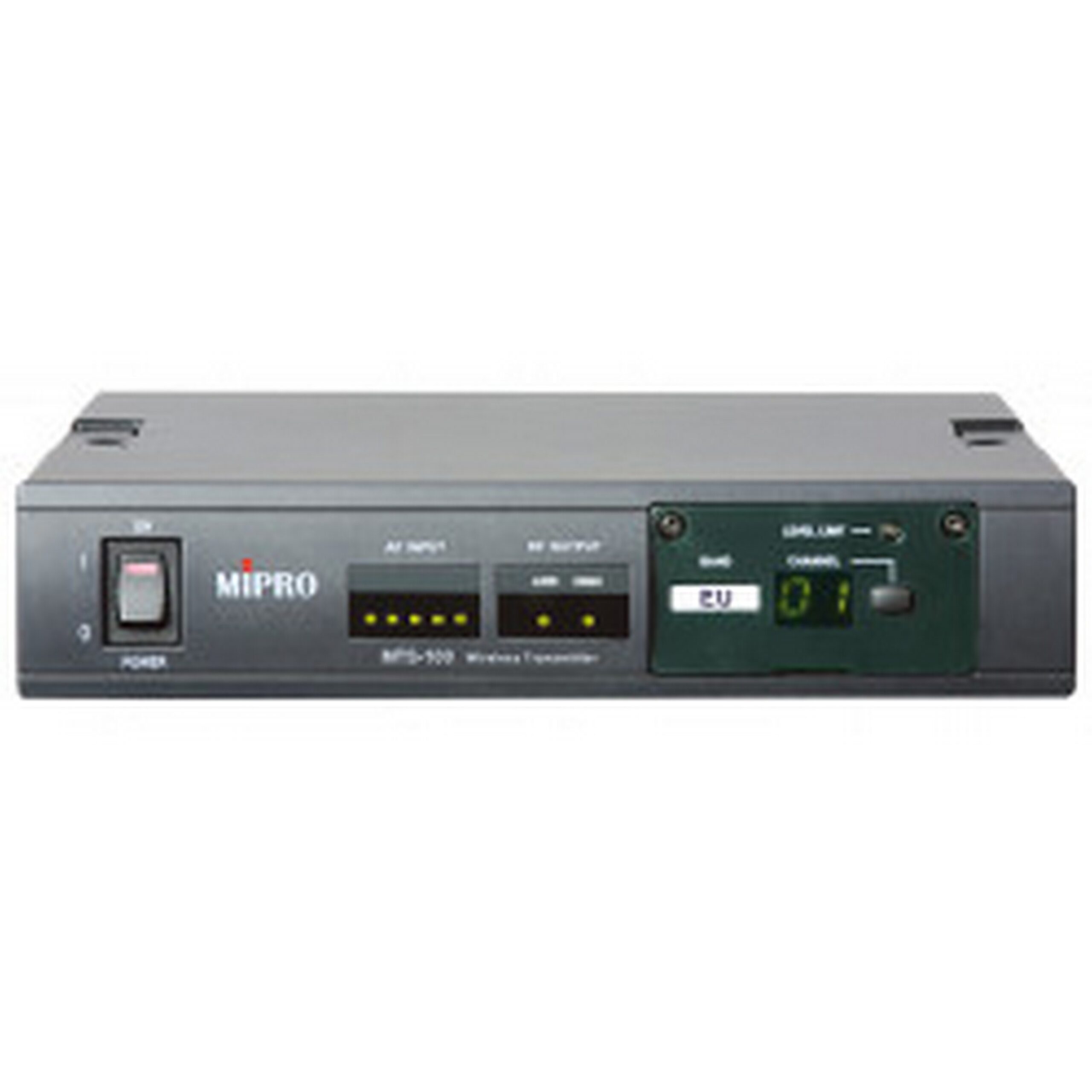

The MIPRO MTS-100 digital stationary transmitter is a top - notch device designed for use with MIPRO's tour guide and language interpretation systems. It's incredibly lightweight and comes with 16 selectable channels, ensuring interference - free operation. You can power condenser microphones with the 48V phantom power it provides. Operating between 926 - 928 MHz, no licensing is needed. Ideal for both indoor and outdoor guided tours, assisted listening, or language interpretation. Key features include a modular design for easy setup, operation, and maintenance. There's a bright LED channel display, and you can choose between low - level direct output or high - level output via a wideband amplifier. Select the optimal input audio signal level for the best modulation index. Audio input and RF output LED indicators keep you informed. It provides 48V phantom power for condenser microphones. Technical specs: Frequency range is 926 - 928 MHz, oscillation mode is PLL Synthesized, and the switching bandwidth is 2MHz. With 16 preset frequencies, 2 FSK modulation, and high stability from 0°C to +60°C. The channel grid is 125 kHz, RF output power has low and high settings, and it uses a TNC 50 - OHM antenna. It has a transmission range of over 100 meters on high setting, a frequency response of 50 Hz - 10 kHz, and various input options. It has a power supply of 12 - 15V DC, dimensions of (W H D) 210 - 44 - 206 mm / 8.3 - 1.7 - 8.1 inches, and weighs about 1.1 kg / 2.4 lbs.
Using the MIPRO MTS - 100 is a breeze. First, connect your condenser microphone to the XLR or 6.3 mm input. Make sure to set the input level switch to either Mic or Line - Level according to your microphone type. Then, adjust the input level using the adjustable VR for the best sound. You can select one of the 16 channels on the bright LED display to avoid interference. You can also choose between low - level direct output or high - level output via the wideband amplifier. When using condenser microphones, turn on the 48V phantom power switch. As for power, use a 12 - 15V DC power supply. For maintenance, keep the device in a clean and dry place. Check the connections regularly to ensure they are secure. If the LED indicators show abnormal behavior, it might be a sign of an issue. Don't expose the device to extreme temperatures outside the 0 - 60°C range. When not in use, store it properly to protect it from damage.
