Product Detail

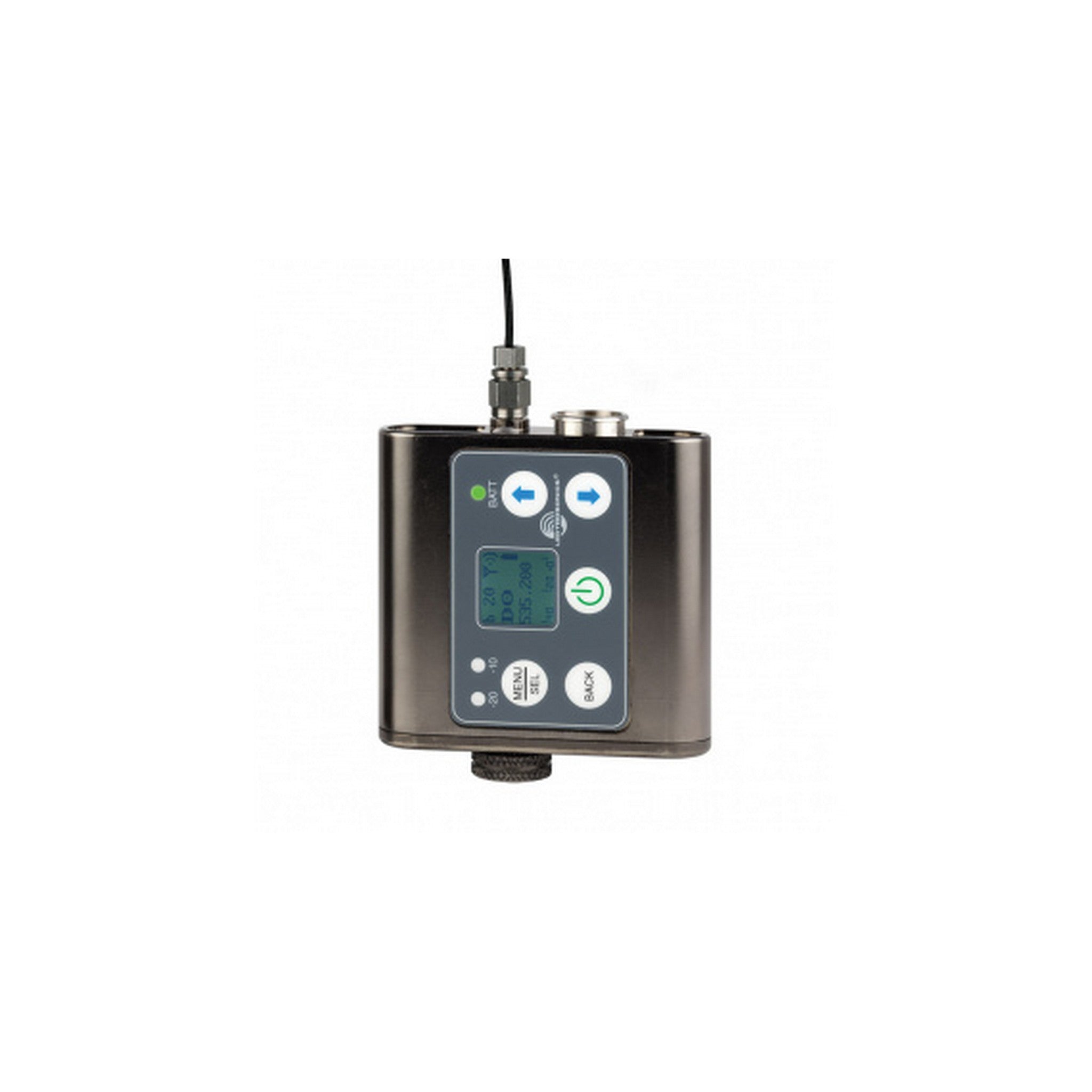

The Lectrosonics SMDWB Miniature Wide - band Wireless Audio Transmitter, Model EO7 - 941, is a top - notch audio device crafted for professional wireless use. It offers outstanding audio clarity and reliability in live events, film productions, and broadcasting, thanks to its wide frequency range operation. This compact transmitter has an ultra - lightweight, corrosion - resistant housing with water - resistant seals, making it perfect for damp environments and ideal for pros who need long - lasting equipment. With an ultra - compact design, the SMDWB is easy to use and highly versatile. It features a simple interface with an LCD screen and a lockout option to avoid accidental changes. Its programmable compatibility modes allow seamless connection with various receivers, enhancing adaptability in dynamic settings. The infrared (IR) port enables quick setup. Powered by a strong battery system, it can operate for long hours. You can select RF output power of 25, 50, or 100 mW to optimize the range or ensure a stable link in high - noise areas. It also offers hands - free setup and adjustment via audible tones and can be put on standby to save battery during setup. Key features include a wide - band frequency range, ultra - compact portability, durable housing, an easy - to - use LCD interface, programmable compatibility, fast IR setup, selectable RF power, long battery life, and low - distortion audio fidelity. Technical specifications cover frequency range, input connectors, battery type and life, channel spacing, RF power output, compatibility modes, and more. What's included are an AA battery, two antennas (AMM - 19 and AMM - 22), a belt clip, a pouch with a swivel clip, a connector kit, and a 16GB microSD card.
Using the Lectrosonics SMDWB transmitter is easy. First, insert the AA battery. You can choose alkaline or lithium, but lithium is recommended for longer life. Connect your audio source to the TA5M 5 - pin male input connector. The input can handle different types of microphones and line levels. Use the control panel with the LCD screen and 4 membrane switches to set up your transmitter. You can select the RF output power, adjust the gain, and set the compatibility mode according to your receiver. The infrared (IR) port allows for fast setup. Just align it with the corresponding port on your receiver. For long - term use, here are some tips. Keep the transmitter in a dry place, as it's water - resistant but not waterproof. Avoid exposing it to extreme temperatures, as the operating range is - 20 to 40 degrees Celsius (- 5 to 104 degrees Fahrenheit). If you're not using it for a while, remove the battery to prevent corrosion. Also, regularly check the antenna for any signs of damage. If you need to record audio, insert a microSDHC memory card. The card can store.wav files, and different sizes offer different recording times. Remember to format the card in the correct file system before use. Enjoy high - quality audio with your Lectrosonics SMDWB transmitter!
