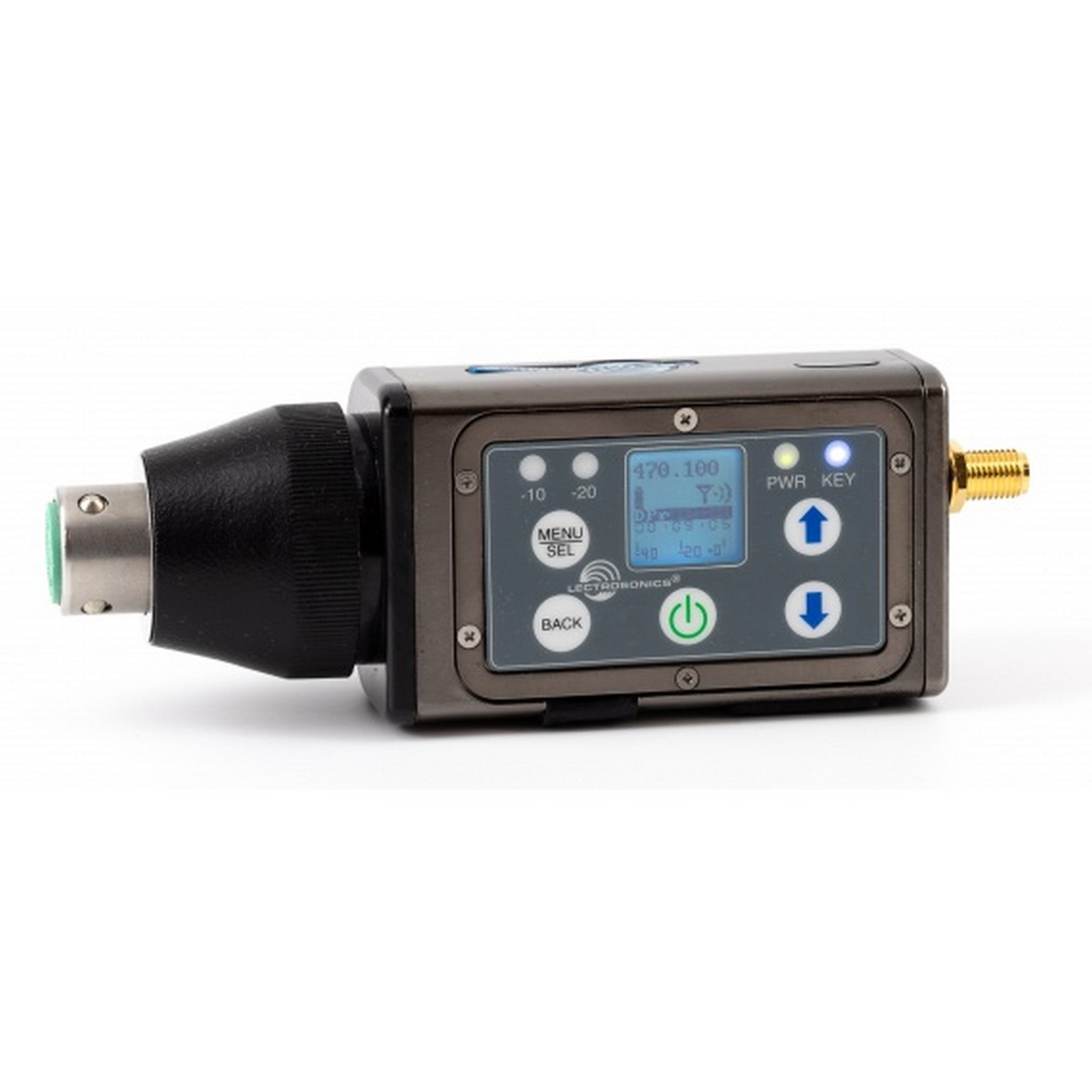

Lectrosonics DPR-A Digital Plug On Transmitter

The Lectrosonics DPR-A Digital Plug-On Transmitter is a top - notch device for audio professionals. Its unique plug - on design easily connects to any microphone or line - level source via a standard XLR connector. With a wide UHF tuning range from 470.100 to 607.950 MHz, it can tune in 100 kHz or 25 kHz steps. You can select an output power of 25 or 50 mW. It uses AES 256 - CTR encryption, ensuring high - level security. The external antenna provides an excellent operating range. This transmitter features high - efficiency digital circuitry, allowing it to run on two AA batteries for an extended time. A multi - color LED indicates its status. An IR port simplifies setup with IR - enabled receivers, and updates can be made via an SD card. The input amplifier uses an ultra - low - noise op - amp for quiet operation. It has a wide - range gain control and a dual envelope limiter, providing over 30 dB of headroom. A 24 - bit A - D converter digitizes audio and filters out supersonic noise above 21 kHz. Key features include a wideband UHF tuning range, acceptance of microphone or line - level signals, selectable phantom power, adjustable low - frequency roll - off, and more. Technical specifications cover aspects like operating frequencies, RF power output, frequency stability, and more.

Using the Lectrosonics DPR - A Digital Plug - On Transmitter is straightforward. First, connect your microphone or line - level source to the standard XLR connector. You can then set the desired tuning frequency within the 470.100 - 607.950 MHz range, with 100 kHz or 25 kHz steps. Select the output power of 25 or 50 mW according to your needs. To set up quickly, use the IR port with an IR - enabled receiver. When it comes to power, insert two AA batteries (lithium is recommended). You'll see the status indicated by the multi - color LED. For audio quality, you can adjust the gain control and the low - frequency roll - off. When using the recorder, insert a microSDHC memory card. Note that the transmitter should be operated within the temperature range of - 20 to 50 degrees Celsius (- 5 to 122 degrees Fahrenheit). For maintenance, keep it clean and dry. Check the battery regularly and replace them when the power is low. Also, make sure to update the device via the SD card to keep it running smoothly.
