Product Detail

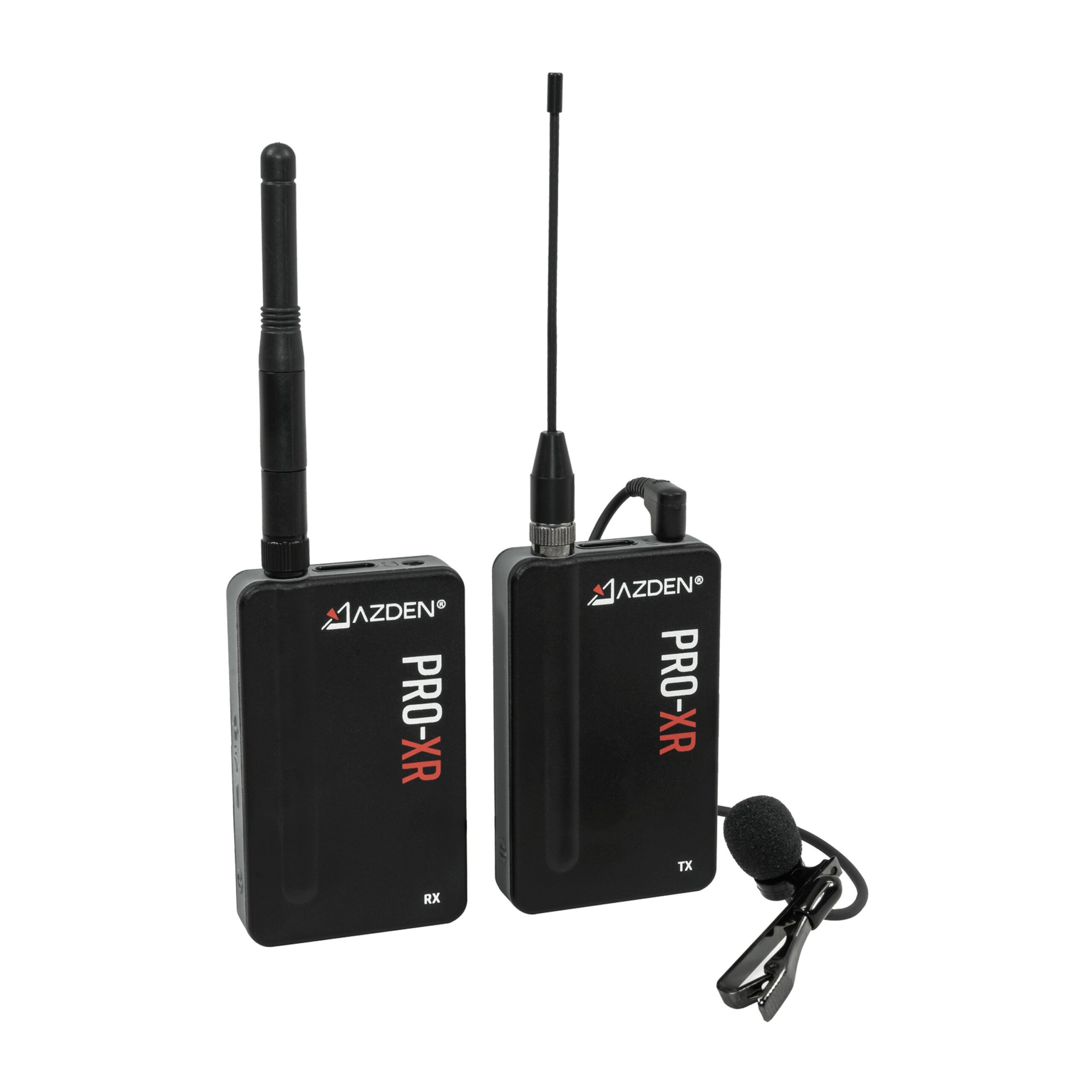

The Azden PRO-XR 2.4 GHz Wireless Microphone System is a revolutionary digital wireless solution. By leveraging cutting - edge technologies, it overcomes the line - of - sight and congestion issues common in traditional 2.4 GHz wireless systems, offering unparalleled reliability.
Key Features:
- Ideal for digital cameras and mobile devices.
- Proprietary digital tech ensures zero 2.4 GHz interference.
- Adjustable transmitter output power for diverse needs.
- External antenna design enhances signal reception.
- Up to 500 - foot range for wide - area use.
- Comes with a high - quality lavalier microphone and smartphone mount.
- Rechargeable lithium - ion batteries with long runtime (up to 20 hours on RX and 14 hours on TX).
- Six - step adjustable output gain for precise audio control.
- Headphone, microphone outputs, and line - in auxiliary input.
- 2 - year warranty with online registration.
Technical Specifications:
- SYSTEM: Operating in the 2.4 GHz ISM Band, with 86 dB signal - to - noise ratio, 90dB (Mic) or 87dB (Line) dynamic range, up to 350 - foot operating range in optimal conditions, 60 Hz - 20 kHz (Mic) or 30 Hz - 20 kHz (Aux) frequency response, 384 kbps bit rate, 4.5 ms system latency, 500 - cycle battery life with >70% peak performance, lithium - ion polymer battery (3.7 V, 1200 mAh, 4.44 Wh), and USB 5V power supply.
- RECEIVER: Max output level of 1.5 dBV, 3.5 mm dual - mono TRS mic output, 3.5 mm stereo TRS headphone output, 2 k (Mic) or 10 (Headphone) output impedance, 20 - hour battery life, 2.5 - hour charge time, 48x79x14 mm dimensions, and 76 g weight.
- TRANSMITTER: RF output power of 20/50/100 mW, 3.5 mm dual - mono TRS mic input, 3.5 mm stereo line - level aux input, 9.1 k (Mic) or 100 k (Aux) input impedance, - 22 dBV (Mic) or - 2 dBV (Aux) max input, 14/12/10 - hour battery life at 20/50/100 mW respectively, 2.5 - hour charge time, 48x79x14 mm dimensions, and 65 g weight.
- MICROPHONE: Electret Condenser mic element, Omni - Directional polar pattern, 20 Hz - 20 kHz frequency response, - 38 dB @1 kHz sensitivity, 2.2 k @1 kHz impedance, plug - in power DC 1 - 10 V, 3.5 mm TRS connector, and 1.2 m cord length.
Using the Azden PRO - XR Wireless Microphone System is easy. First, make sure both the receiver and transmitter are fully charged. You can charge them using a USB 5V power source, and it takes about 2.5 hours for a full charge.
For the transmitter, connect your lavalier microphone or other audio source to the 3.5 mm dual - mono TRS mic input or the 3.5 mm stereo aux input. Adjust the RF output power according to your needs, choosing from 20, 50, or 100 mW.
On the receiver, connect it to your digital camera or mobile device. You can use the smartphone mount if you're using a mobile device. The receiver has a 3.5 mm dual - mono TRS mic output and a 3.5 mm stereo TRS headphone output. You can also use the line - in auxiliary input if needed. Adjust the output gain in six steps to get the best audio quality.
When using the system, try to keep the transmitter and receiver within the 500 - foot range for optimal performance. Avoid areas with heavy 2.4 GHz interference, as the system's proprietary technology can handle most interference, but it's still better to be cautious.
For maintenance, keep the system clean. Wipe it with a soft, dry cloth regularly. If the battery performance starts to decline after about 500 charge cycles, consider replacing the lithium - ion polymer battery. Remember to register your product online to get the 2 - year warranty.
