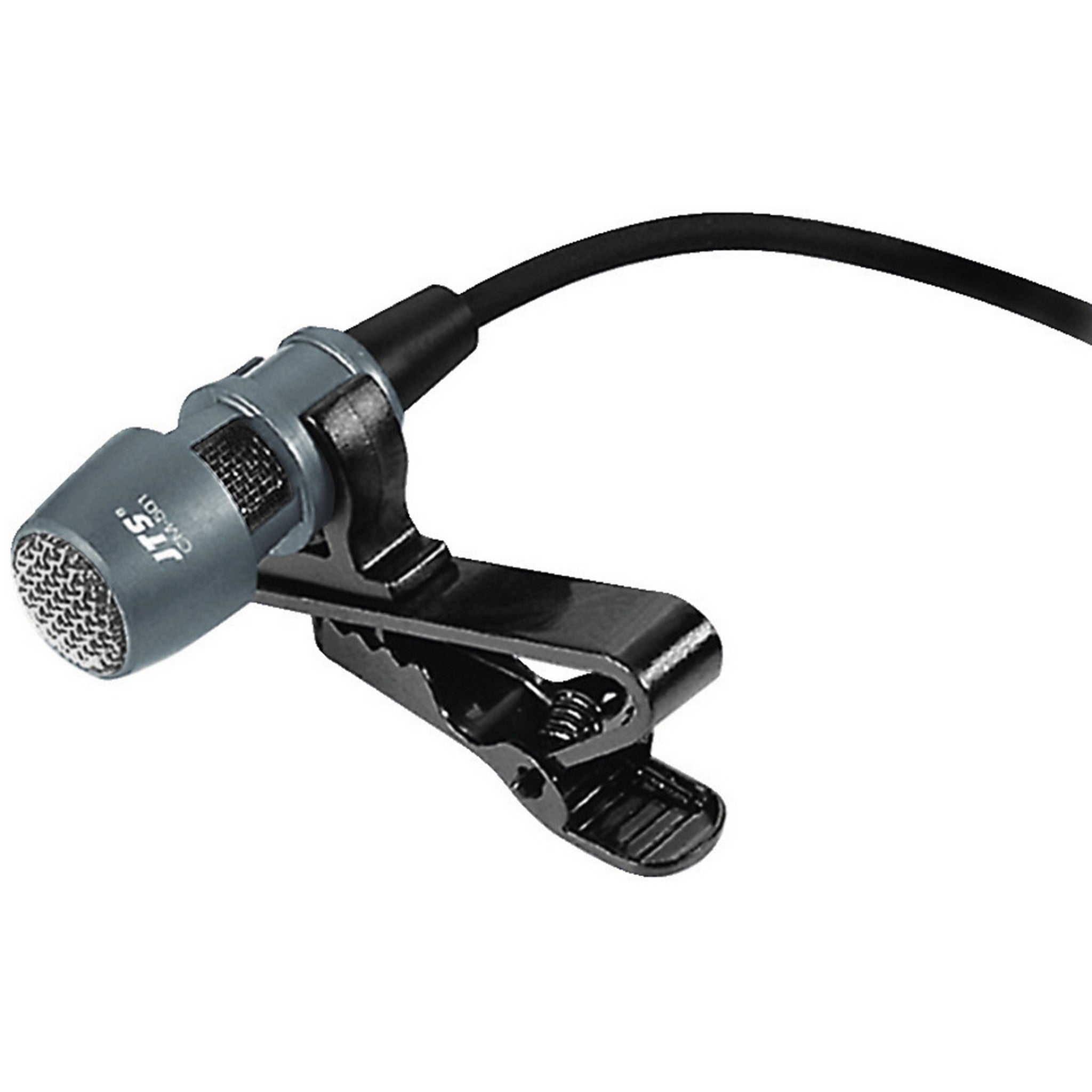

JTS CM-501 Condenser Cardioid Lapel Microphone
This is an excellent condenser lapel microphone, perfect for presentations and discussions.
Key Features
- Ideal for presentations and discussions, it ensures clear voice transmission.

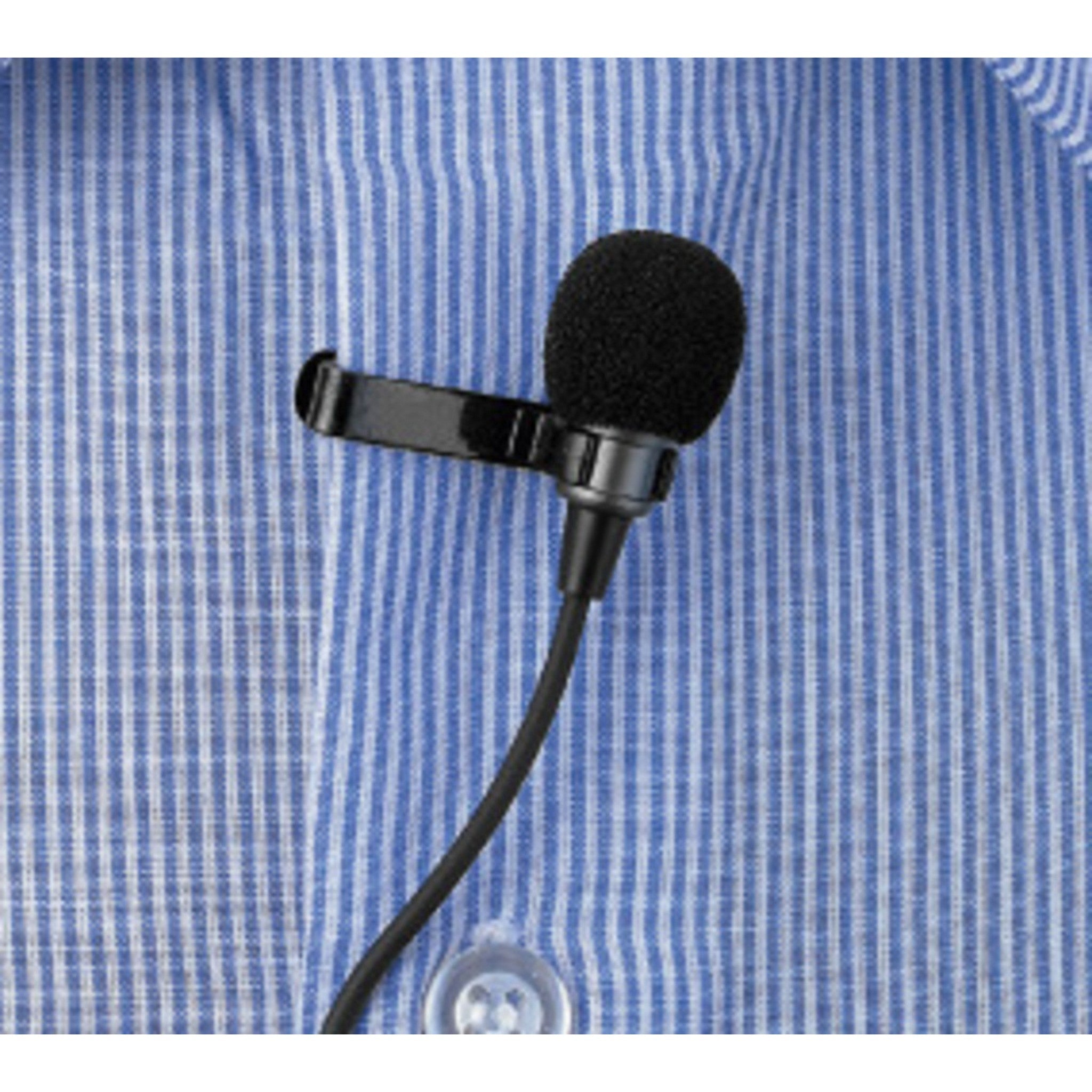

- With a supplied tie - clip, it fits securely and is easy to attach, providing good audibility.
- It has a cardioid polar pattern, which can pick up high - quality voices precisely over a wide dynamic range.
- Comes with a windshield to reduce noise.
Technical Specifications
Description: Lapel Microphone
Transmission method: cable
Polar pattern: Cardioid
System: Condenser

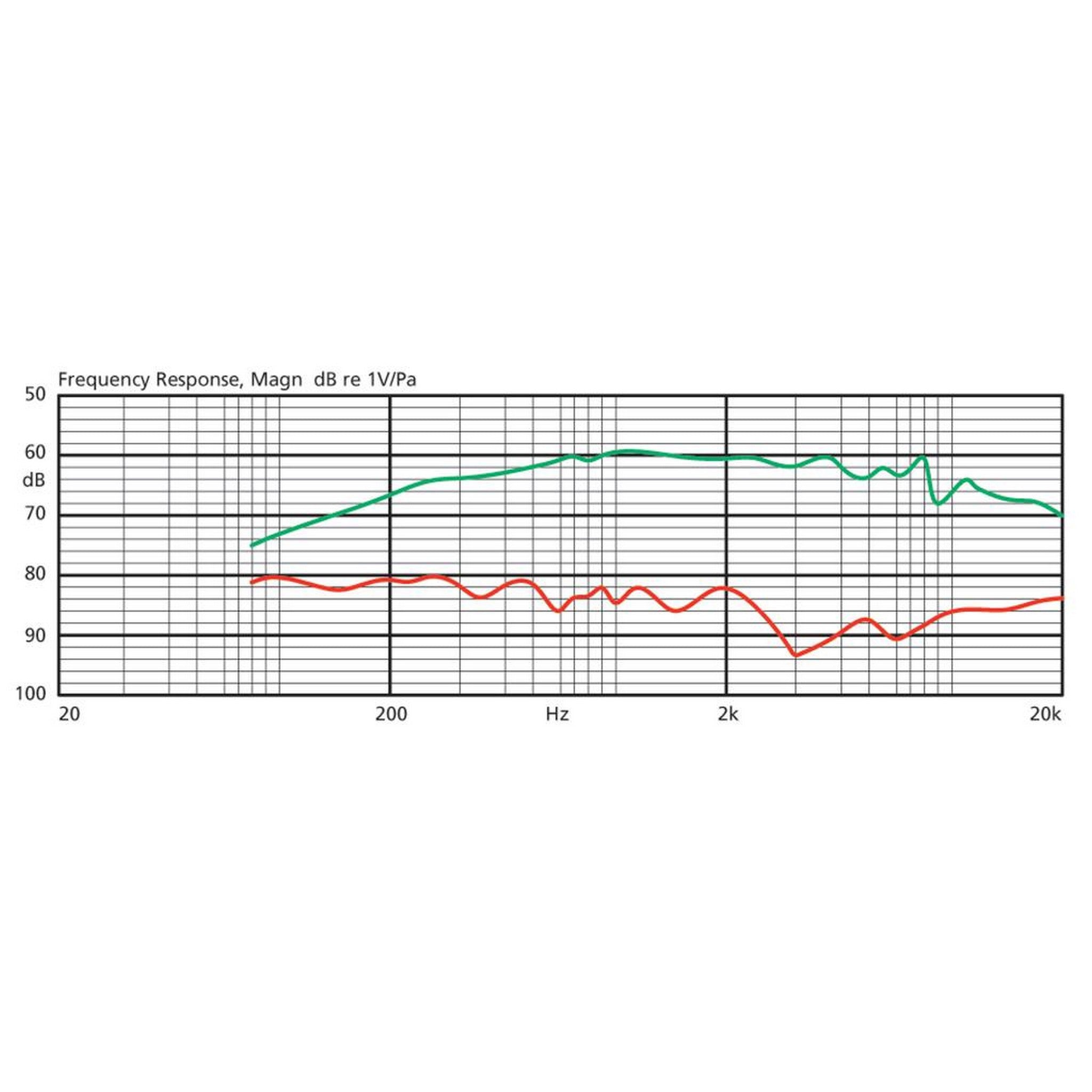

Audio frequency range: 100 - 15,000 Hz
Nominal impedance: 2.2 kΩ
Sensitivity: 3.2 mV/Pa
Max. sound pressure: 130 dB
Power supply: Pocket Transmitter IN/PT/UF series or PS - 500
Admiss. ambient temp.: 0 - 40 °C
Weight: 20 g
Connection: 4 - pole mini XLR
Packing dimensions (W x H x L): 0.09 x 0.055 x 0.145 m
Gross weight: 0.065 kg
Net weight: 0.065 kg
Using the JTS CM - 501 microphone is a breeze. First, attach it to your clothing with the provided tie - clip. Connect it to the power supply, which can be a Pocket Transmitter IN/PT/UF series or PS - 500. You're now ready to use it for presentations or discussions. When using it, keep in mind that the microphone works best within an ambient temperature of 0 - 40 °C. Avoid exposing it to extreme heat or cold. For maintenance, gently clean the microphone with a soft cloth. Don't forget to regularly check the cable for any signs of damage. If you're not using the microphone for a long time, store it in a dry and cool place. Also, protect the windshield from dirt and debris to ensure the best sound quality.
