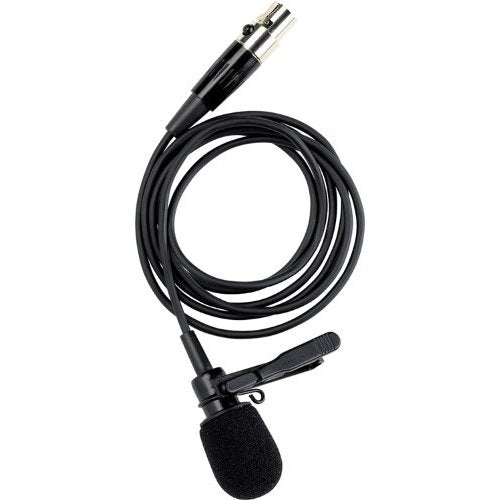

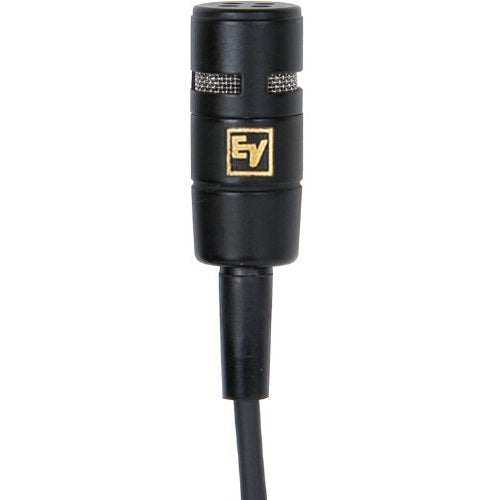

The Electro - Voice RE92TX is a top - notch miniature electret condenser lavalier microphone with a cardioid pickup pattern. Ideal for speech, it's perfect for presentations, houses of worship, broadcast, or theater. Key features include a back - electret condenser element, a cardioid polar pattern, an integrated 6 - foot (180cm) cable. The TA4F connector works well with all EV bodypack transmitters and can be used with TXA for wired XLR applications. Technical specs: Connector Type: TA4F; Max SPL (1% THD): 135dB; Height: 0.41' (10.5mm); Net Weight: 0.81oz (23g); Family: RE Series; Mic Type: Lavalier; Max Diameter: 0.94' (24mm); Element: Back Electret Condenser; Open Circuit Voltage: 5.6mV/Pascal; Case Material: Metal; Finish: Non - reflecting Black; Current Consumption: < 500 uA; Polar Pattern: Cardioid; Wired/Wireless: Wireless.
Using the Electro - Voice RE92TX is easy. First, attach the microphone to your clothing. The cardioid pattern picks up sound best from the front, so make sure it faces towards your mouth. Connect the TA4F connector to an EV bodypack transmitter or use TXA for wired XLR applications. When not in use, keep it in a dry place away from dust. Clean the microphone gently with a soft, dry cloth. Avoid getting it wet as this can damage the condenser element. If you're using it for long periods, keep an eye on the current consumption to ensure it doesn't exceed the limit.
