Product Detail

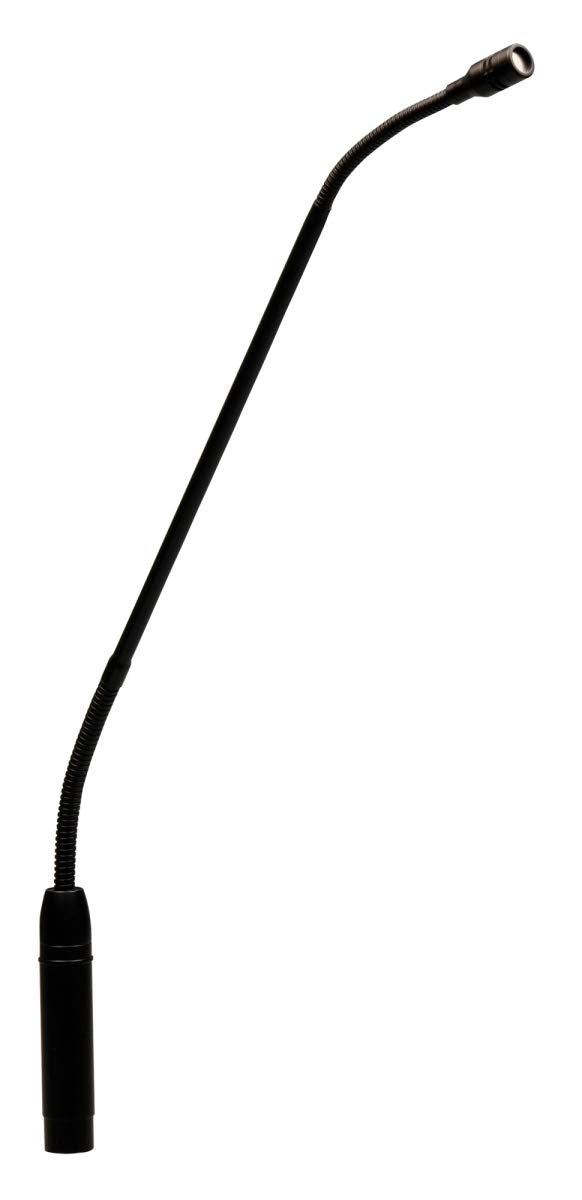

The Superlux E322LBS is a 24 - inch cardioid electret condenser gooseneck microphone. Part of the Superlux E322 Series, these quick - mount back - electret condenser microphones are perfect for speech and vocal reinforcement. Available in 18 and 24 - inch lengths, they come in various configurations. Features include a large 9.7mm diaphragm for clear sound, RF shielding to prevent interference, a high - pass filter (for E322L & M) to reduce low - frequency noise, and an on/off switch with LED indicator (for E322LS & MS). They have a balanced preamplifier output and come with a shock mount, compression - lock flange mount, foam windscreen, HM - 22 Shock Mount, and HM - 23 Flange Mount. These versatile microphones are great for boardrooms, conference rooms, and more, whether on a lectern, desktop, or conference table. With a frequency response of 40 - 20,000 Hz and a sensitivity of - 40dBV/Pa, they offer excellent audio quality. They can handle a max SPL of 127dB and require 9 to 48 VDC phantom power. Available in black or white with a 3 - pin male XLR connector. The E322L weighs 7.76oz and the E322M weighs 5.64 oz.
Using your Superlux E322LBS gooseneck microphone is easy. First, choose the right length for your needs, either 18 or 24 inches. Mount it on a lectern, desktop, or conference table using the included compression - lock flange mount. Connect it to your audio system with the 3 - pin male XLR connector. Make sure to supply 9 to 48 VDC phantom power. When speaking, position the microphone at a suitable distance for the best sound quality. The cardioid polar pattern focuses on the sound in front, so face it towards the source of the sound. If there's a lot of low - frequency noise, the high - pass filter (on E322L & M models) can help clean up the audio. You can turn the microphone on and off using the switch with LED indicator (E322LS & MS models). For maintenance, keep the microphone clean. You can gently clean the diaphragm and the body with a soft, dry cloth. Avoid getting the microphone wet. If you're using it outdoors or in a windy environment, put on the foam windscreen to reduce wind noise. The shock mount helps prevent vibrations from being picked up, so make sure it's properly installed. When not in use, store the microphone in a dry and safe place.
