Product Detail

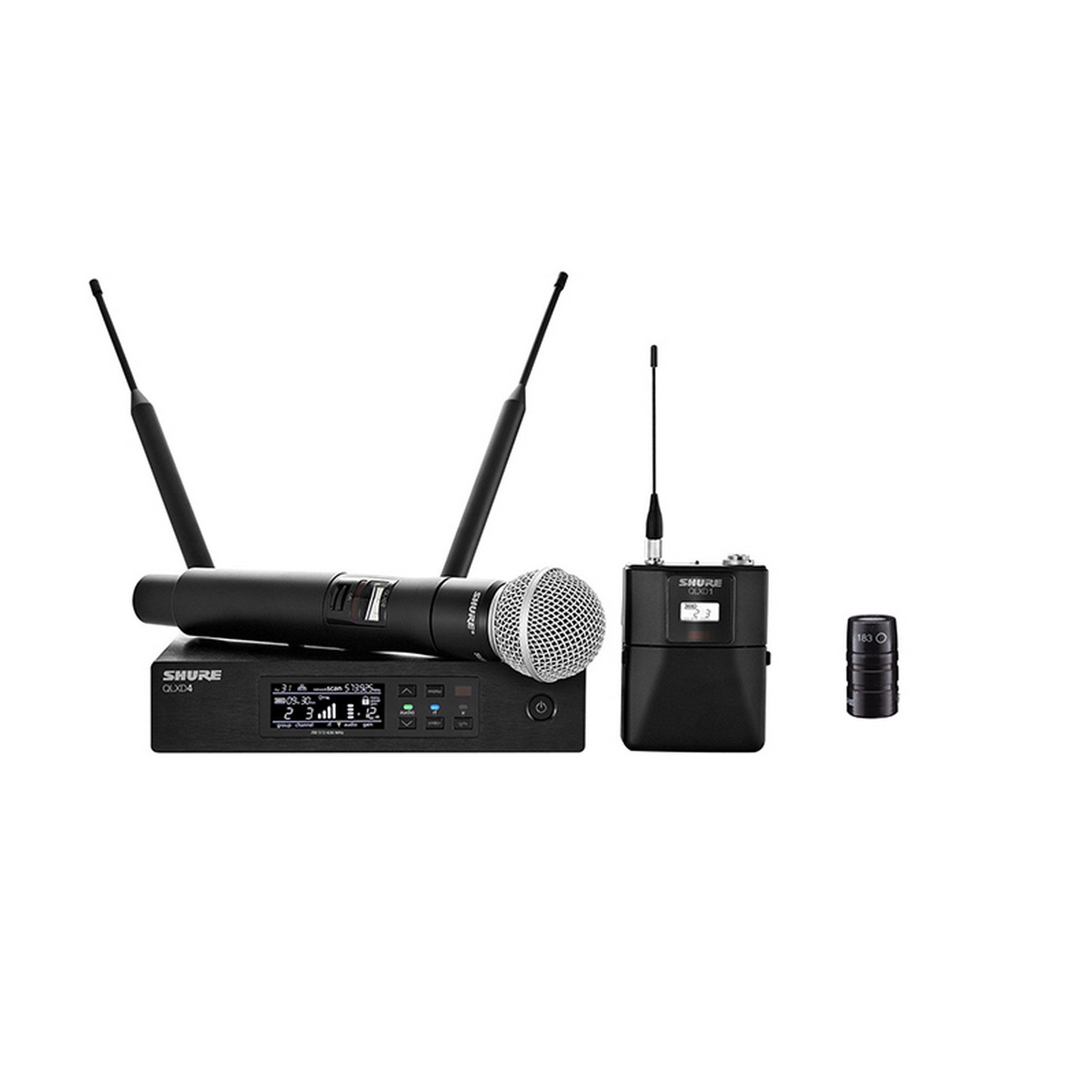

The Shure QLXD124/83-G50 Wireless Bodypack and Handheld Vocal Combo System with WL183 is from the QLX-D wireless systems family. It offers outstanding wireless performance, perfect for mid - size events in businesses, hotels, government offices with conferencing areas, schools, houses of worship, and live performance venues. Note that the bodypack and handheld transmitters can't be used at the same time. The WL183 (Omnidirectional) is great for general sound reinforcement, recording, or remote monitoring. It has low handling noise and a 360 - degree pickup angle. The lavalier electret condenser mics (WL183, WL184, and WL185) come with a 1.2 - meter cable and a rotatable tie - clip. They feature CommShield Technology to prevent interference from cellular RF devices and digital bodypack transmitters. Technical details include a condenser type with a 50 - 17,000 Hz frequency response, 1800 - ohm impedance, etc. The package includes QLXD2/SM58, WL183, QLXD1, QLXD4, microphone clip, zipper bags, batteries, power supply, antennas, cables, adapters, rackmount kit, and user guide.
Using the Shure QLXD124/83 - G50 system is easy. First, choose either the bodypack or handheld transmitter, as they can't be used at the same time. Insert the batteries (either Shure SB900 rechargeable Li - Ion or AA 1.5V) into the transmitter. Connect the WL183 lavalier mic to the bodypack if you're using it. For the receiver, connect it to a power supply and then connect the audio output to your sound system. You can adjust the gain on the receiver to get the right sound level. When it comes to maintenance, keep the system clean. Wipe the mics and transmitters with a soft, dry cloth. Store the system in a cool, dry place. Also, be aware of the battery runtime - the Shure SB900 can last up to 10 hours at 10 mW, while alkaline batteries can last up to 9 hours. Make sure to check the batteries regularly to avoid any interruptions during use.
