Product Detail

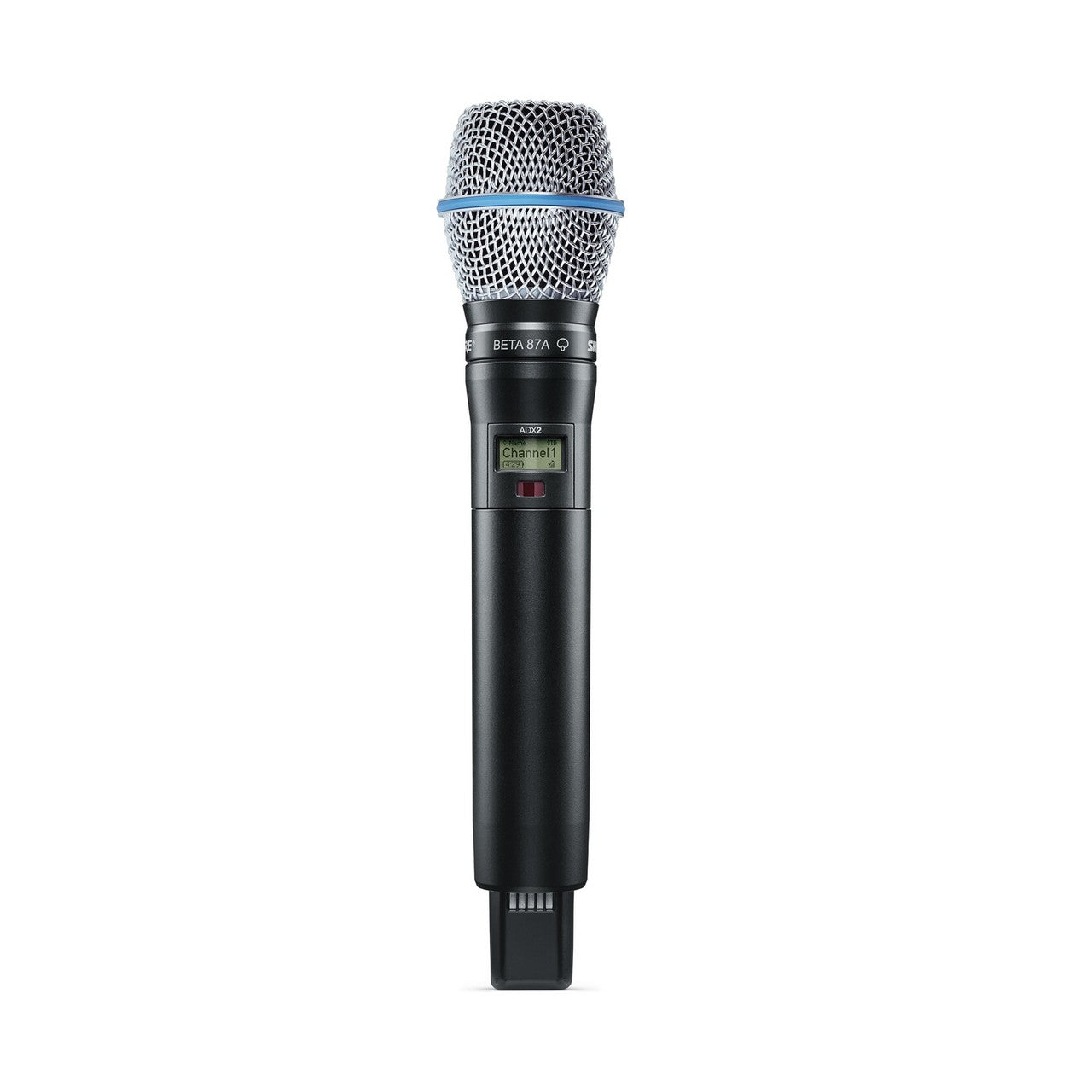

The Shure ADX2/B87A G57 is a top - notch professional wireless microphone transmitter built for the toughest live sound situations. It's compatible with Axient Digital Wireless Systems, bringing you amazing audio clarity, rock - solid reliability, and high - end features for both live shows and broadcasts.
This transmitter has an extensive frequency range of up to 184 MHz and advanced recharge options, ensuring great performance every time you use it. Its sleek, black - finished metal case looks great, is durable, and lightweight, perfect for the rigors of touring. With the well - known Beta87A cartridge, it delivers studio - quality sound with a wide dynamic range. The included SB920A rechargeable batteries give you up to 9 hours of continuous use, ideal for long sessions. The ShowLink remote control lets you adjust settings on the fly, so you can keep the performance running smoothly without leaving the stage.
What's more, the ADX2/B87A comes with Diversity ShowLink, which automatically avoids interference and allows remote control of the transmitter, making every performance a breeze. You can choose between standard and high - density transmission modes for optimal coverage or maximum system channel count. The secure and encrypted transmission keeps your audio signals private and intact. Whether you're in a large venue or a small setting, the Shure ADX2/B87A G57 always provides professional - grade sound with unbeatable reliability.
Key Features:
- Durable black - finish metal case that resists moisture
- SB920A rechargeable battery for up to 9 hours of runtime
- Optional fully - covered radome for docked charging via external contacts
- Remote transmitter control and automatic interference avoidance with Diversity ShowLink
- Two transmission modes: Standard for best coverage, High Density for max channel count
- Secure and encrypted transmission
- Compatible with the Beta87A cartridge
Specifications:
- Mic Offset Range: - 12 to 21 dB (in 1 dB steps)
- Battery Type: Shure SB920A Rechargeable Li - Ion
- Battery Runtime: Up to 9 hours
- Dimensions: 254 mm x 51 mm (10.0 in. x 2.0 in.) L x Dia.
- Weight: 338 g (11.9 oz.) without battery
- Housing: Cast Aluminum
- Operating Temperature Range: - 18°C (0°F) to 50°C (122°F)
- Storage Temperature Range: - 29°C (- 20°F) to 74°C (165°F)
- Audio Input Configuration: Unbalanced
- Maximum Input Level: 145 dB SPL (SM58), typical
- Antenna Type: Dual Band Helical
- Occupied Bandwidth: <200 kHz
- Channel - to - Channel Spacing: Standard Mode: 350 kHz, High Density Mode: 125 kHz
- Modulation Type: Shure Axient Digital Proprietary
- Power: 2 mW, 10 mW, 40 mW
- Specific Absorption Rate (SAR): < 0.19 W/kg
- Network Type: IEEE 802.15.4
- Antenna Type: Zigbee Dual Conformal
- Frequency Range: 2.40 to 2.4835 GHz (24 Channels)
- RF Output Power: 10 dBm (ERP)
Package Contents:
- Shure ADX2/B87A Wireless Microphone Transmitter
- Two SB920A Rechargeable Batteries
- User Manual
- Protective Carrying Case
- Docking Charger (Optional)
Using the Shure ADX2/B87A G57 is easy. First, insert the SB920A rechargeable batteries into the transmitter. You can also use the optional docking charger for charging. Once the batteries are in, turn on the transmitter. You can choose the standard or high - density transmission mode according to your needs. If you need better coverage, go for the standard mode; if you want more channels, choose the high - density mode.
When using it on stage, you can use the ShowLink remote control to adjust settings like volume or frequency without having to leave the stage. The transmitter will automatically avoid interference thanks to the Diversity ShowLink feature.
Here are some important things to note. Don't expose the transmitter to extreme temperatures. The operating temperature range is from - 18°C (0°F) to 50°C (122°F), and the storage temperature range is from - 29°C (- 20°F) to 74°C (165°F). Also, keep the metal case dry as it can resist moisture but too much water may still cause problems.
For maintenance, after each use, put the transmitter back in the protective carrying case. If the battery runtime starts to get shorter, it might be time to replace the SB920A batteries. And don't forget to refer to the user manual if you have any other questions.
