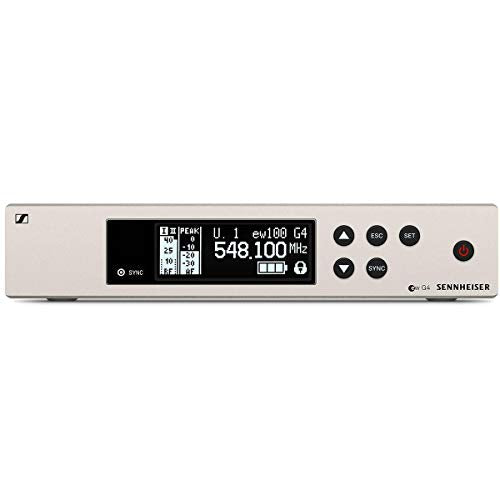

Sennheiser EM 100 G4-G Rackmount True Diversity Receiver

The Sennheiser EM 100 G4-G is a top - notch rackmount true diversity receiver crafted for professional audio needs. It offers outstanding sound quality and reliability, encased in a sturdy full - metal housing that stands up to heavy use. With an easy - to - read LCD display, you have full control over your wireless audio setup, making it a must - have for the Evolution Wireless G4 100 Series systems. This receiver operates across multiple frequency ranges (A1: 470 - 516 MHz, A: 516 - 558 MHz, G: 566 - 608 MHz), ensuring flexibility and compatibility in various settings. It supports quick and effortless wireless synchronization between the transmitter and receiver via infrared, and provides up to 42 MHz bandwidth with 1680 selectable frequencies for stable UHF performance. With a transmission range of up to 100 meters (300 feet) and high RF output power (up to 30 mW, depending on country regulations), it maintains a strong and clear signal. Ideal for stage shows and corporate events, it minimizes RF interruptions, delivering crystal - clear and stable audio.

Using the Sennheiser EM 100 G4 - G is easy. First, connect the power supply to the receiver and make sure it's plugged into a 12V DC source. Attach the two rod antennas to the BNC sockets. Then, synchronize the transmitter and receiver via infrared for a quick setup. You can adjust the frequency according to your needs using the intuitive LCD display. When using it, keep it within the temperature range of - 10°C to +55°C. Avoid exposing it to extreme heat or cold. For maintenance, keep the receiver clean by using a soft, dry cloth. Don't use abrasive materials that could scratch the casing. Check the cables regularly for any signs of wear and tear. If you need to change the frequency settings, refer to the frequency supplement sheet in the package. Remember, the RF output power may be restricted by country regulations, so make sure to comply with local laws.
