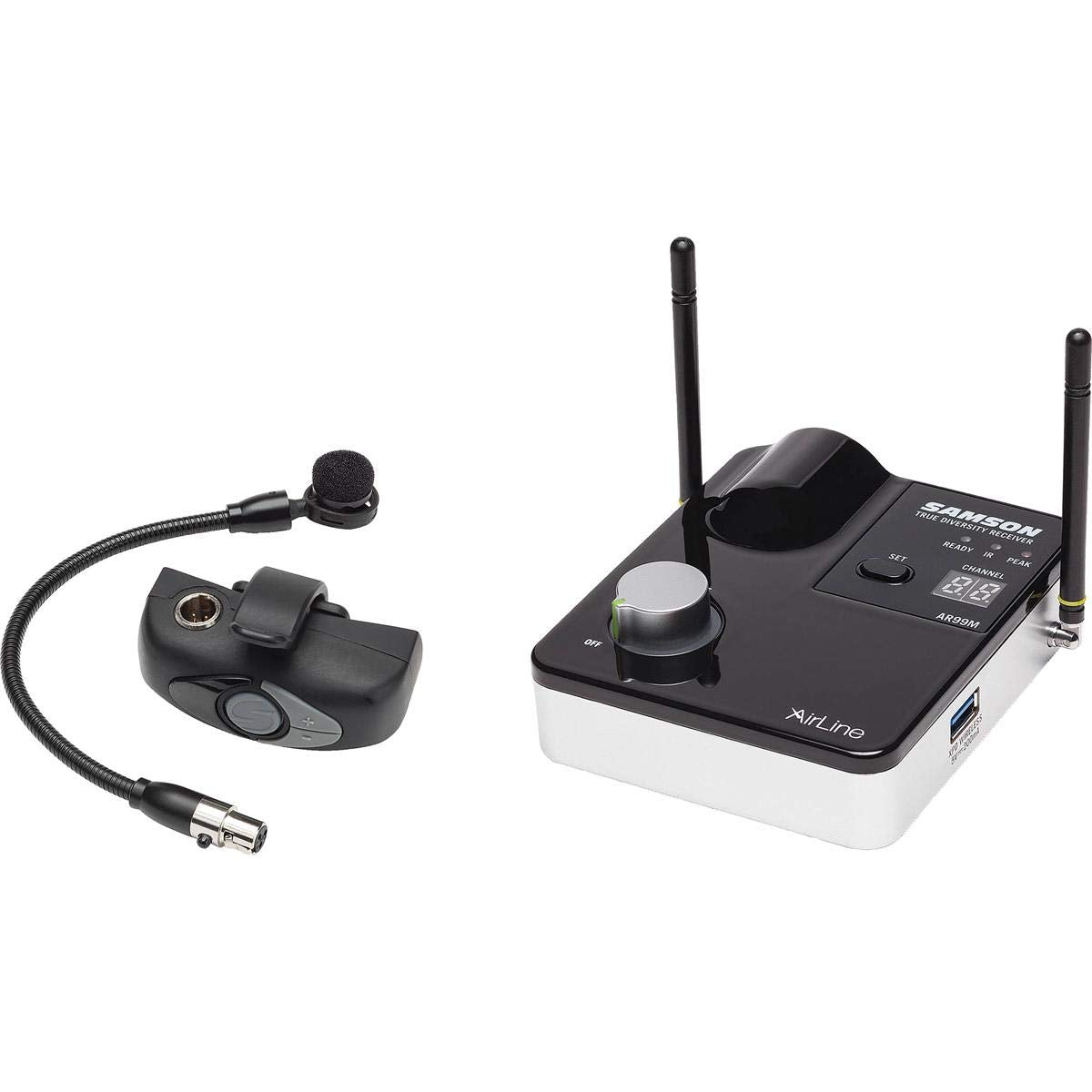

The Samson AWXm Micro UHF Wind Instrument System in K Band brings the latest Samson wireless technology. It pairs the innovative ATX clip - on transmitter with the portable AR99m micro receiver. This frequency - agile wireless system can fit into any gig bag, giving you full access to the stage.
**Sound Relay**: The ATX wireless transmitter has an unobtrusive design. It can be easily mounted on the bell of your instrument with a gentle yet secure clip - on connection. With up to eight hours of rechargeable, cable - free battery life, it's a perfect match for your instrument.
**Customizable Microphone**: Capture your instrument's sound with the HM60 condenser microphone. Designed for live performance, it offers a dynamic, natural sound with a wide 20 Hz to 18 kHz frequency response. It can handle high sound pressure levels up to 125dB, making it great for close - miking brass and woodwind instruments. The supercardioid polar pattern reduces ambient noise, and the unique 3 - point halo isolation mount minimizes vibrations and key - click noises.
**Compact and Multifunctional**: The AR99m micro receiver emphasizes functionality and versatility. With a 300' operating range and three output connections (1/4', 1/8' and XLR), it offers more compatibility in a smaller size. You can scan 100 available channels with a single button press to ensure maximum wireless clarity. Connect a Samson XPD Series USB Digital Wireless System (sold separately) to turn it into a dual - channel system, or charge the ATX transmitter via the receiver's USB port.
**Key Features**:
- Frequency - agile UHF wireless system
- 100 operating channels across 24MHz bandwidth
- Up to eight simultaneous systems per frequency band (region - dependent)
- Comes with AC adapter and magnetic transmitter charging cable
- True RF Diversity micro receiver design to minimize dropouts
- Set button to scan and select optimal operating channel
- IR sync to match transmitter to receiver frequency wirelessly
- Tone key to prevent unwanted noise
- Channel and Ready/IR/Peak LED displays
- Balanced XLR, unbalanced 1/4' and unbalanced 1/8' outputs
- USB port for adding wireless systems and charging the ATX transmitter
- Rotary volume knob
- 1/4 - wave antennas
- ATX transmitter clips directly to instrument bell
- Up to eight hours of battery life with built - in rechargeable lithium - ion battery
- Sealed gold contact charging connector
- Low battery LED indicator
- 300' operating range (line - of - sight)
- Variable Gain control
- One - touch Mute
- HM60 microphone has supercardioid pickup pattern
- Handles up to 125dB SPL
- 3 - point halo isolation mount
- 8.5' gooseneck (P3 connector) for optimal mic placement
- Comes with a windscreen
**Technical Specifications**:
- Frequency Range: K band (470 - 494MHz), D band (542 - 568MHz)
- Working Range: 300' (100m) line of sight
- Audio Frequency Response: 50 Hz - 15 kHz
- T.H.D. (Overall): <1% (@AF 1 kHz, RF 46 dBu)
- Dynamic Range: >100 dB A - weighted
- Signal to Noise: >95 dB
- Operating Temperature: - 10 deg C (14 deg F) to +60 deg C (+140 deg F)
- Tone Key Frequency: 35 kHz
- ATX Transmitter: Mini - XLR (P3) input connector, 3k OHM input impedance, 20dB input gain range, 10mW EIRP RF power, 3.6V 500mAh lithium - ion rechargeable battery, 8 hours battery life, dimensions 5.9” x 6.7” x 3.9” (150mm x 170mm x 100mm), weight 0.13lb / 60g
- AR99m Receiver: 1/8” & 1/4” jack +14dBu audio output level, XLR jack +9dBu audio output level, 1/8” & 1/4” jack 810 Ohms audio output impedance, XLR jack 240 Ohms audio output impedance, 100dBm/30dB SINAD sensitivity, >50dB image rejection, 15VDC 600mA operating voltage, dimensions 4.3” x 3.74” x 1.5” (110mm x 95mm x 39mm), weight 0.42lb / 192g
Using the Samson AWXm Micro UHF Wind Instrument System is easy. First, clip the ATX transmitter directly onto the bell of your wind instrument. There's no need for a belt - pack or cable. Make sure the battery is charged; it can last up to eight hours with the built - in rechargeable lithium - ion battery. You can use the variable gain control and one - touch mute as needed.
Next, connect the HM60 condenser microphone to the ATX transmitter using the Mini - XLR (P3) connector. Adjust the 8.5' gooseneck to get the best mic placement for your instrument.
Turn on the AR99m micro receiver. Press the set button to scan and select the optimal operating channel. You can use the IR sync to wirelessly match the transmitter to the receiver frequency. The receiver has three output connections (1/4', 1/8' and XLR), so choose the one that suits your setup. You can also use the rotary volume knob to adjust the sound level.
If you want to expand the system, you can connect a Samson XPD Series USB Digital Wireless System (sold separately) via the receiver's USB port. You can even charge the ATX transmitter using this USB port.
**Note**:
- Make sure there are no obstacles between the transmitter and the receiver for the best 300' line - of - sight operating range.
- Don't expose the system to extreme temperatures outside the - 10 deg C (14 deg F) to +60 deg C (+140 deg F) range.
**Maintenance**:
- Clean the transmitter and receiver regularly with a soft, dry cloth.
- When not in use, store the system in a cool, dry place.
- If the battery life of the ATX transmitter starts to decrease, consider replacing the lithium - ion battery.
