Product Detail

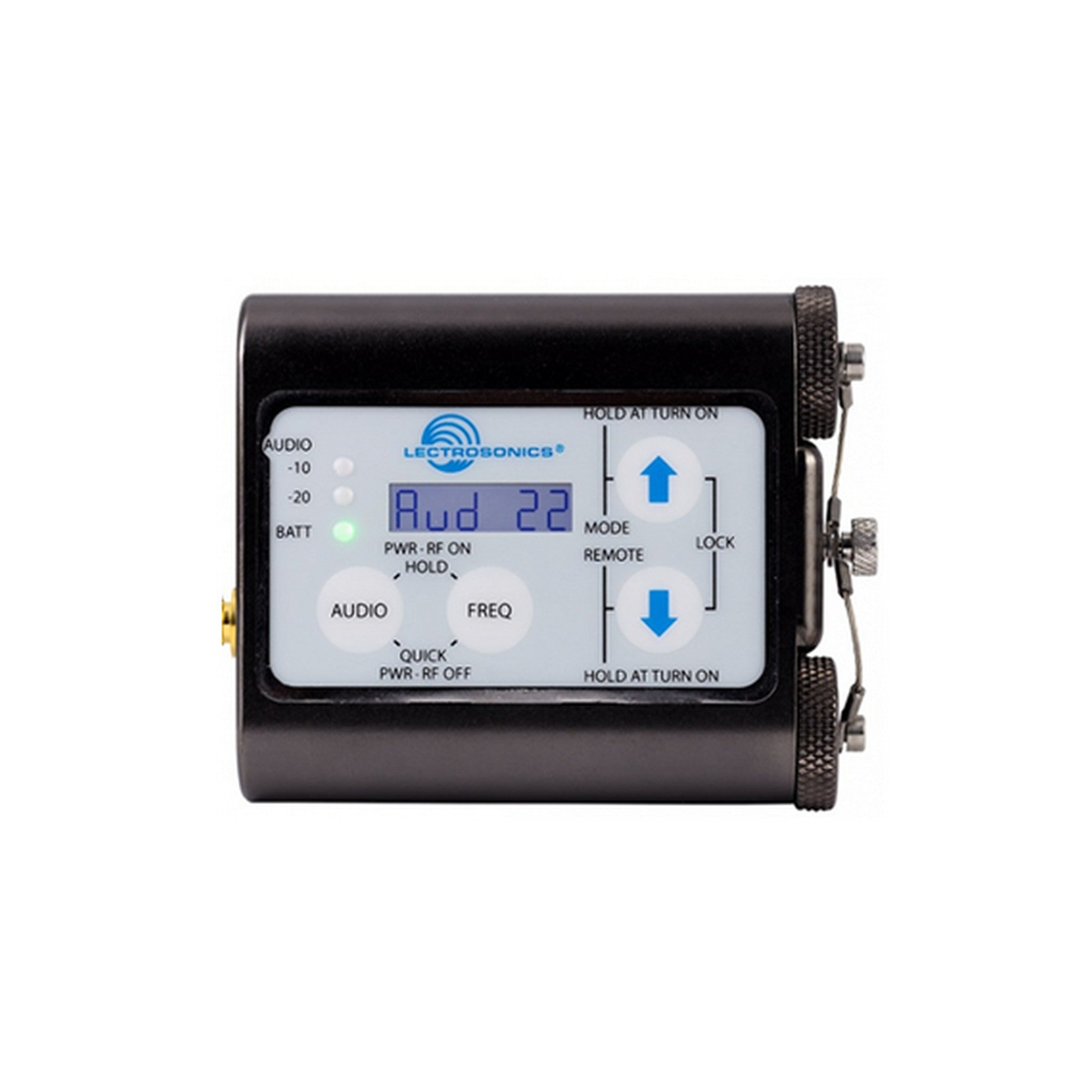

The Lectrosonics WM Digital Hybrid Wireless Beltpack Transmitter, operating in the 537.600 - 563.175 MHz range, is a top - notch device designed for wet or dusty environments. It features O - ring sealed battery compartments and input jack, a compression sealed antenna port, and gasket sealed control panel and back cover. Dual AA batteries offer double the operating time compared to earlier watertight transmitter designs. With larger membrane switches, a well - designed control panel, and a highly visible, backlit LCD, the user interface is greatly enhanced. Key features include selectable output power (50, 100 or 250 mW) for optimal battery life and excellent operating range, a machined aluminum, corrosion - resistant housing, water - resistant seals, an LCD interface with a lockout option, programmable compatibility modes for various receivers, and servo bias input circuitry with selectable voltage. Its technical specifications cover a wide range of aspects such as multiple operating frequency blocks, different channel spacings, and more.
Using the Lectrosonics WM Digital Hybrid Wireless Beltpack Transmitter is easy. First, insert two 1.5 - Volt AA lithium batteries into the sealed battery compartment. Connect your microphone or other audio source to the 2.5 mm locking micro input jack. You can use the membrane switches on the control panel to select the frequency, adjust the gain, and set other parameters. The LCD display will show you all the important information. When using it in wet or dusty conditions, rest assured that the water - resistant seals will protect the device. However, avoid submerging it in water. For maintenance, keep the device clean. You can use a soft, dry cloth to wipe it. Check the O - rings regularly and replace them if they show signs of wear. If you have any issues, refer to the quick - start guide that comes with the product.
