Product Detail

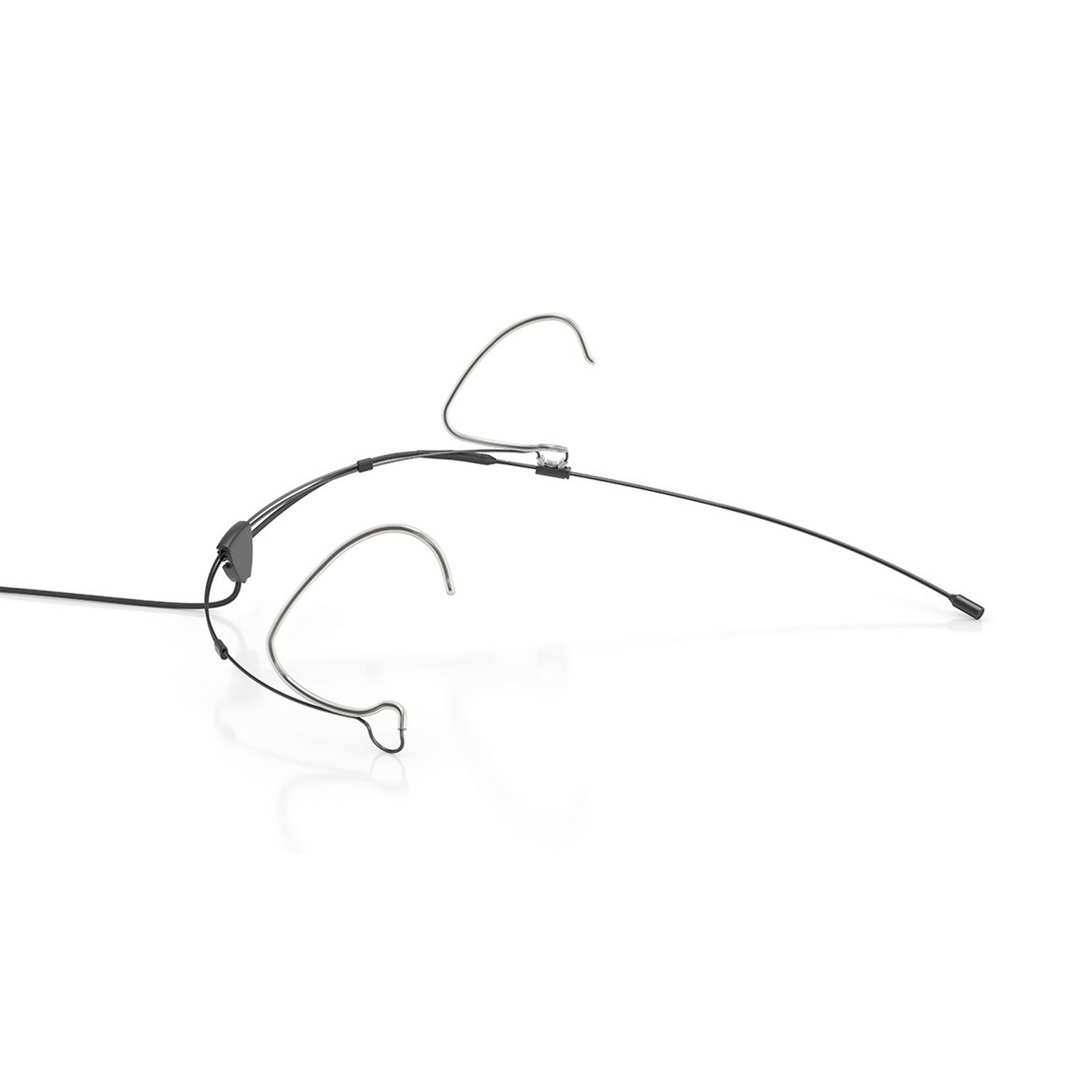

The DPA 6066 - OC - R - B10 d:fine CORE 6066 Omni Headset Microphone in black, with a TA4F Mini - XLR, is a remarkable audio device. Its capsule, just 3 mm in diameter, packs the audio power of larger, award - winning DPA mics. Despite its small size, it offers excellent clarity, consistency, and durability. Thanks to the shrunk CORE by DPA technology, you don't have to sacrifice sound for aesthetics. These mics come with a completely redesigned, lightweight, one - size - fits - all headset that attaches over the ears for maximum comfort. The 3 - point ear grips with spring mechanisms provide added security, and the 2 - way adjustable boom system with an anti - rotate mechanism makes it easy to fit. A new 90 cable management system safeguards the cable and hides it down the wearer’s back. IP58 certified, it has water - repellant nano - coating, hermetic sealing of the amplifier, and dual gold plating of the diaphragm. Technical specs include an omnidirectional pattern, 20 Hz - 20 kHz frequency response, 6 mV/Pa sensitivity, and more. Available in black or beige, it weighs 11 g and has a 1.3 m cable.
Using this DPA headset microphone is easy. First, adjust the 2 - way adjustable boom to the right length and height for you. The one - size - fits - all headset should be placed over your ears, and the 3 - point ear grips will hold it securely. The cable is managed by the 90 system, which directs it down your back. When using, make sure your power supply meets the requirements (min. 5 V to max. 10 V through DPA adapter for wireless systems or 48 V phantom power with DAD6001 - BC). Keep it in a temperature range of - 40C to 45C and relative humidity up to 90%. For maintenance, since it's IP58 certified, it can withstand some water and dust. But avoid exposing it to extreme conditions. Clean it gently with a soft cloth. If you need to use a long cable, remember it can drive up to 300 m with the DAD6001 - BC XLR adapter.
