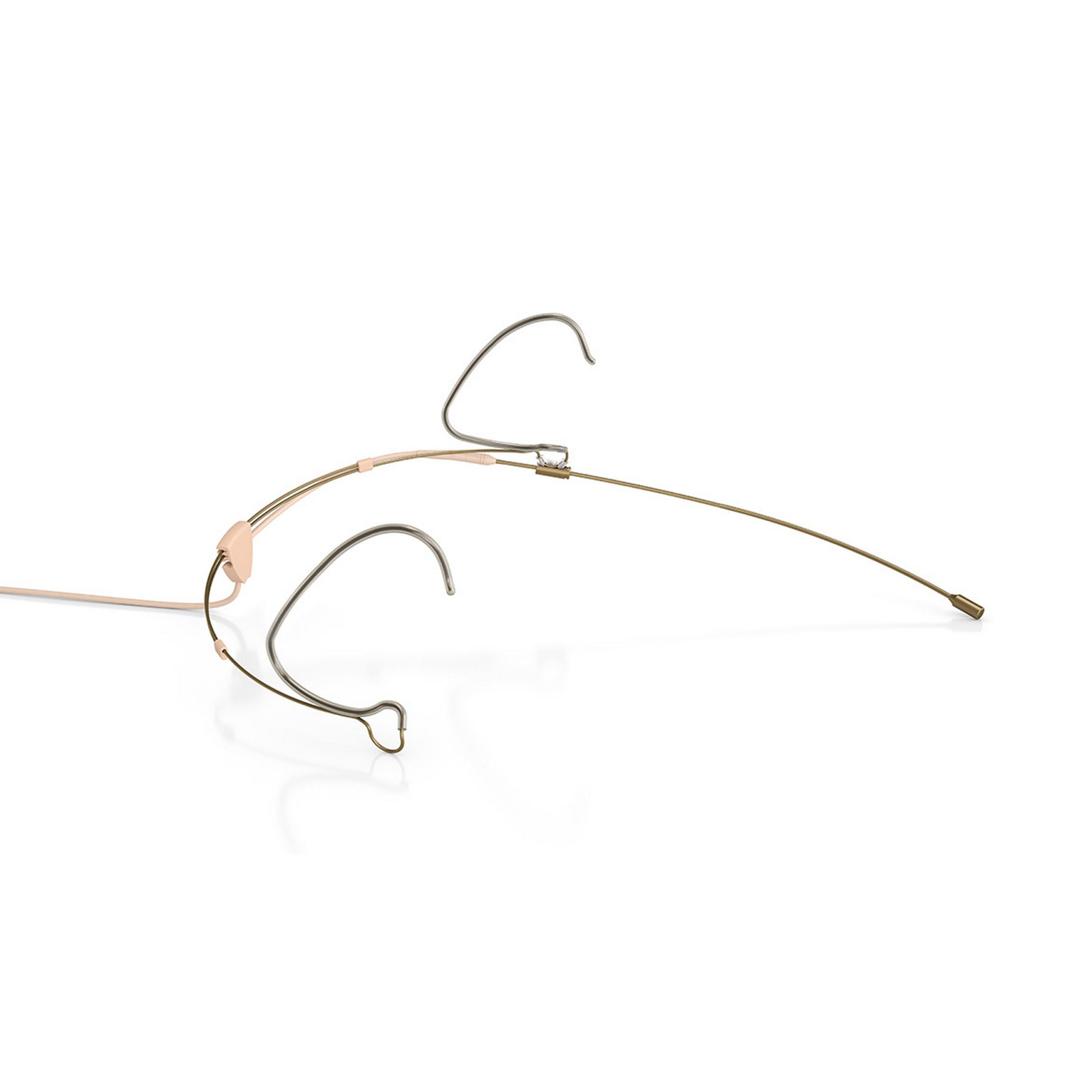

The DPA 6066 - OC - R - F03 d:fine CORE 6066 Omni Headset Microphone in beige comes with a 3 - pin LEMO connector. Its capsule, just 3 mm (0.12 in) in diameter, packs the audio power of larger, award - winning DPA mics. Despite its small size, it offers amazing clarity, consistency, and durability. Thanks to the shrunk CORE by DPA technology, you don't have to sacrifice sound for aesthetics. This mic features a redesigned, lightweight, one - size - fits - all headset that attaches over the ears for maximum comfort. The 3 - point ear grips with spring mechanisms provide extra security, and the 2 - way adjustable boom system (length and height) with an anti - rotate mechanism makes it easy to fit. The new 90 cable management system protects the cable and directs it down the wearer’s back. It's IP58 certified, with water - repellant nano - coating, hermetic sealing of the amplifier, and dual gold plating of the diaphragm. Technical specs include an omnidirectional pattern, pressure operation, pre - polarized condenser principle, a 20 Hz - 20 kHz effective frequency response, and more. Available in black or beige, it weighs 11 g (0.40 oz) and has a 1.3 m (4.3 ft) cable. Once you try it, you'll never want another headset mic.
Using the DPA 6066 d:fine CORE Omnidirectional Headset Microphone is easy. First, adjust the headset to fit your head comfortably. Use the 2 - way adjustable boom system to set the length and height according to your needs. Make sure the 3 - point ear grips are securely in place for stability. Connect the microphone to your audio device using the appropriate connector like MicroDot, TA4F Mini - XLR, 3 - pin LEMO, or Mini - Jack. When using, keep in mind that the temperature range is from - 40C to 45C (- 40F to 113F), and the relative humidity should be up to 90%. Avoid exposing it to extreme conditions. For maintenance, gently clean the microphone head with a soft cloth. Since it's IP58 certified, it has some protection against water, but don't submerge it for a long time. If you're using it with a wireless system, ensure the power supply is within the range of 5V to 10V through the DPA adapter. With the DAD6001 - BC, use 48V phantom power +/- 4V for full performance, and it can also work from 12V.
