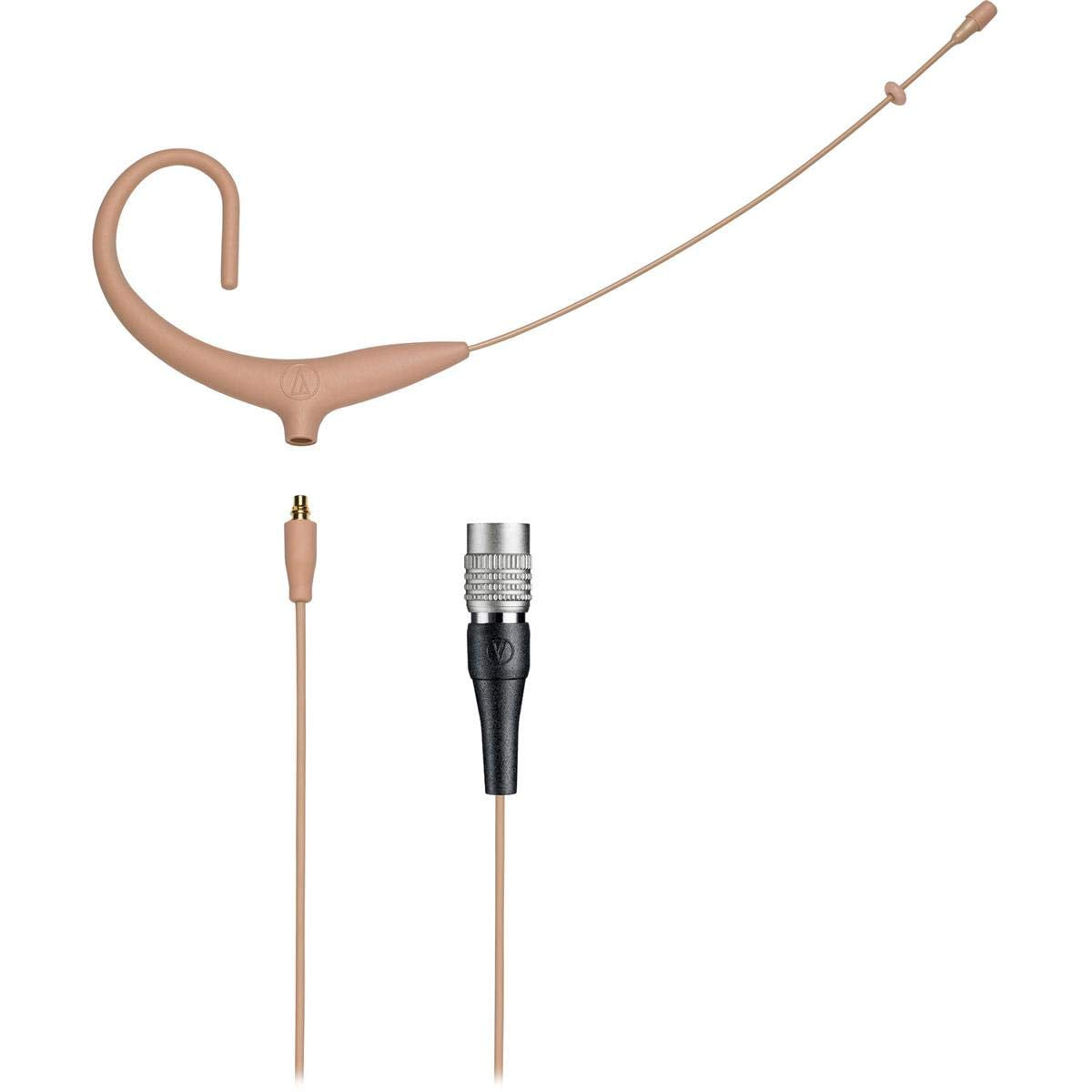

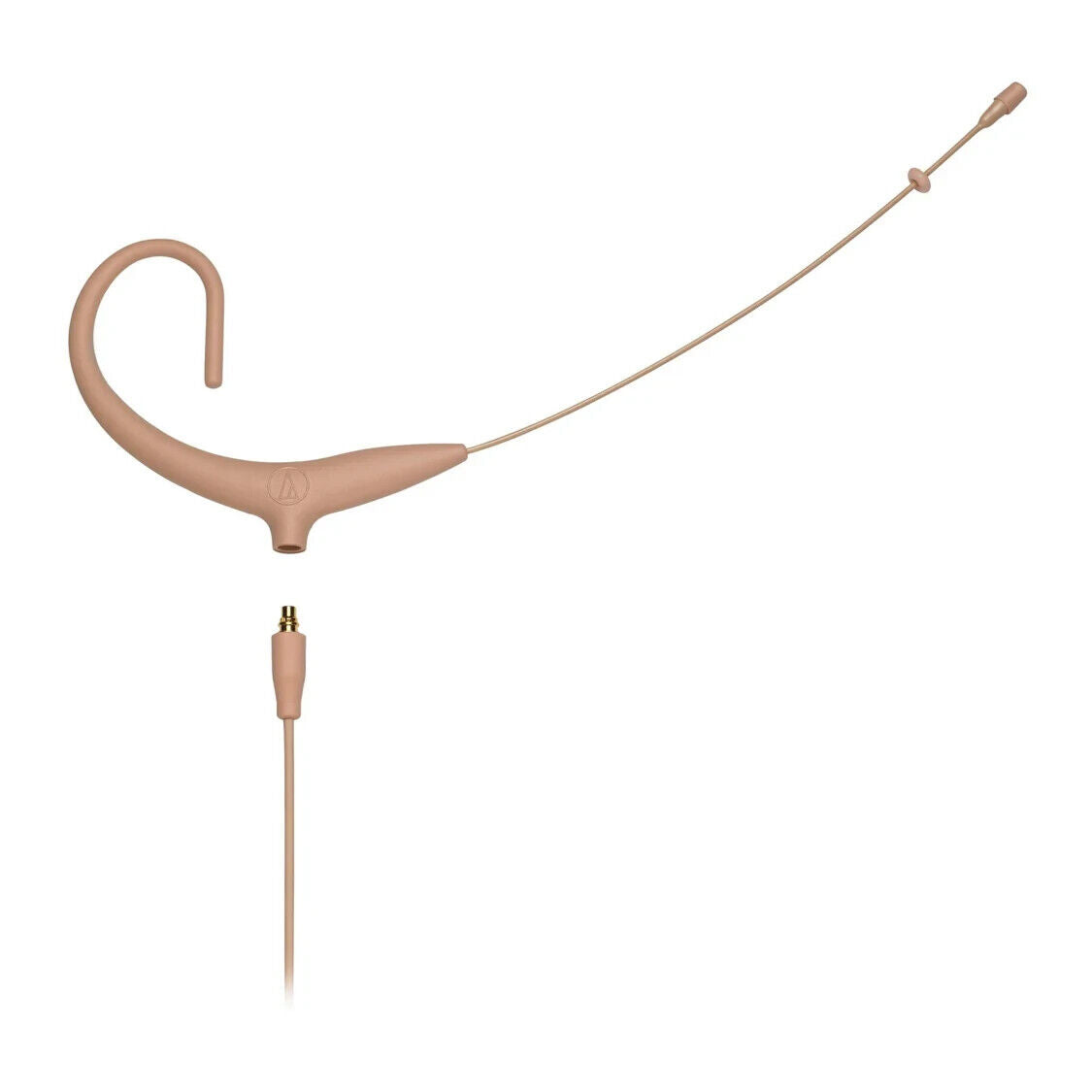

Get ready for a professional audio experience with the Audio-Technica BP892xcW-TH Omnidirectional Earset. This super-lightweight and high-SPL earset has a tiny omnidirectional condenser capsule. It offers clear and natural audio with a flat, wide frequency response. The MicroSet hooks securely behind either ear, giving you a super-secure fit for hours of comfortable use. Whether you're on stage or in a conference call, your voice will be crystal clear.
This earset features a detachable, field-replaceable cable with many available terminations. It's great for both wired and wireless use. The ergonomic under-ear design and flexible loop are comfortable, even if you wear glasses. Made from hypoallergenic materials, it focuses on your comfort and stability. The beige color makes it discreet, perfect for applications where you need to be less visible. The wired version's power module has a high-pass filter to improve sound pickup without hurting voice quality, making it suitable for different professional settings.
Key Features:
- Subminiature omnidirectional condenser capsule for clear and natural vocal reproduction.
- Inconspicuous and lightweight design with a 2.6 mm capsule diameter.
- Ergonomic under-ear design for a secure and comfy fit, ideal for glasses wearers.

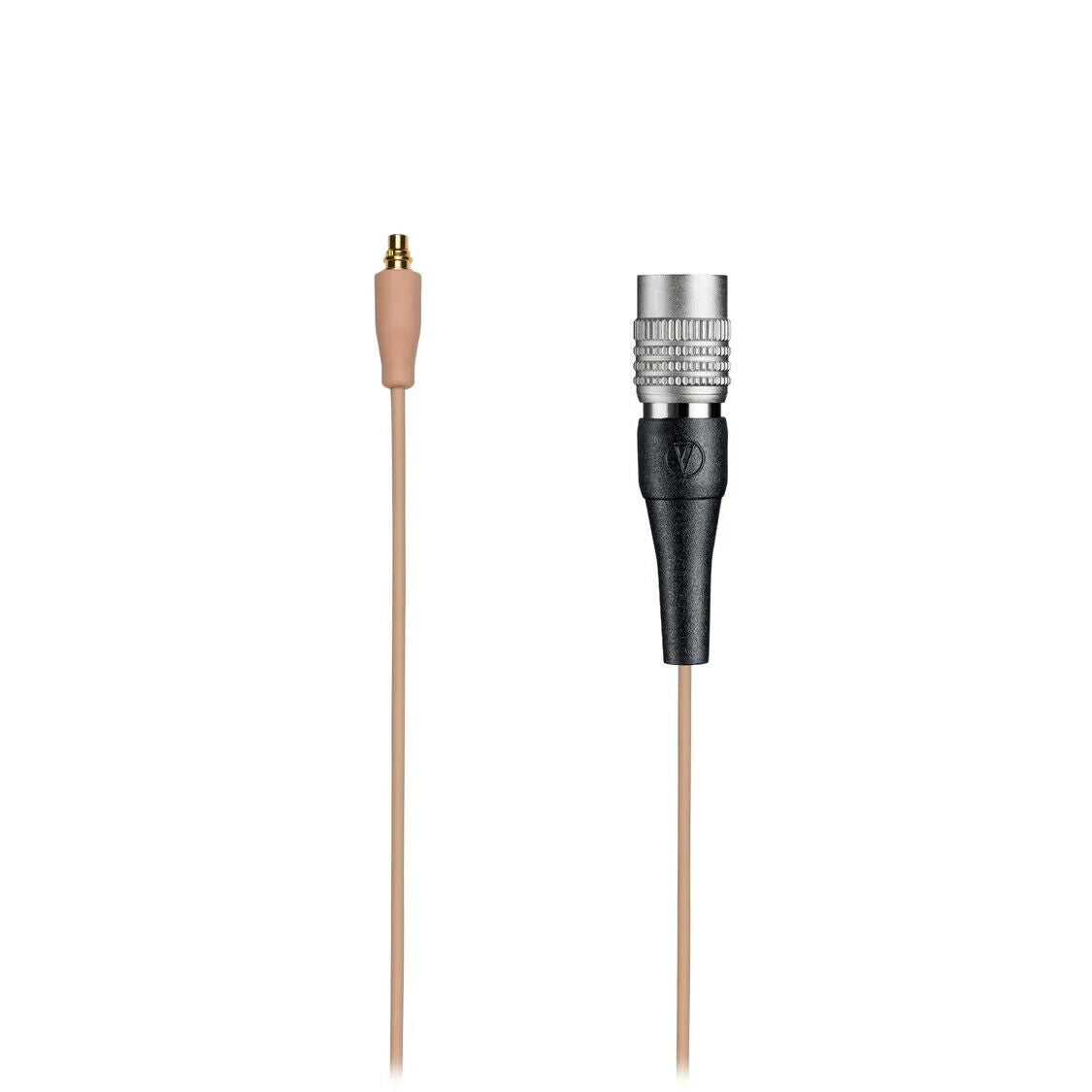

- Detachable and field-replaceable cable with a strong connector and multiple output terminations.
- Handles high sound pressure levels easily.
- Wired version's power module has a high-pass filter for better sound pickup.
- Comes with the AT8464x Dual-Ear Adapter Kit for more stability and comfort.
- Made from hypoallergenic materials for user comfort.
Specifications:
- Element: Fixed-charge back plate, permanently polarized condenser.
- Polar Pattern: Omnidirectional.
- Frequency Response: 20 - 20,000 Hz.
- Low Frequency Roll-Off: 80 Hz, 18 dB/octave (wired only).
- Open Circuit Sensitivity: -43 dB (7.2 mV) re 1V at 1 Pa.
- Impedance: 250 ohms (wired only).
- Maximum Input Sound Level: 136 dB SPL, 1 kHz at 3% T.H.D.
- Dynamic Range (Typical): 104 dB, 1 kHz at 3% T.H.D. Max SPL (wired only).
- Signal-to-Noise Ratio: 63 dB, 1 kHz at 1 Pa.
- Phantom Power Requirements: 11 - 52V DC, 2 mA typical (wired only).
- Current Consumption: 0.2 mA typical at 5V (wireless only).
- Voltage Range: 2.5 - 10V (wireless only).
- Switch: Flat, roll-off (wired only).
- Weight: Microphone, boom & earpiece: 2.6 g (0.09 oz), Power module (wired only) 85 g (3.0 oz).
- Dimensions: Microphone: 9.5 mm (0.37') long, 2.6 mm (0.10') diameter, Boom: 98.5 mm (3.88') long, 1.07 mm (0.04') diameter, Power module (wired only): 100.0 mm (3.94') long, 18.9 mm (0.74') diameter.
- Output Connector (power module): Integral 3-pin XLRM-type.
- Cable: Detachable 1.4 m (55') long, 1.6 mm (0.06') diameter, 2- or 3-conductor shielded cable (termination dependent).
- Audio-Technica Case Style: M31.

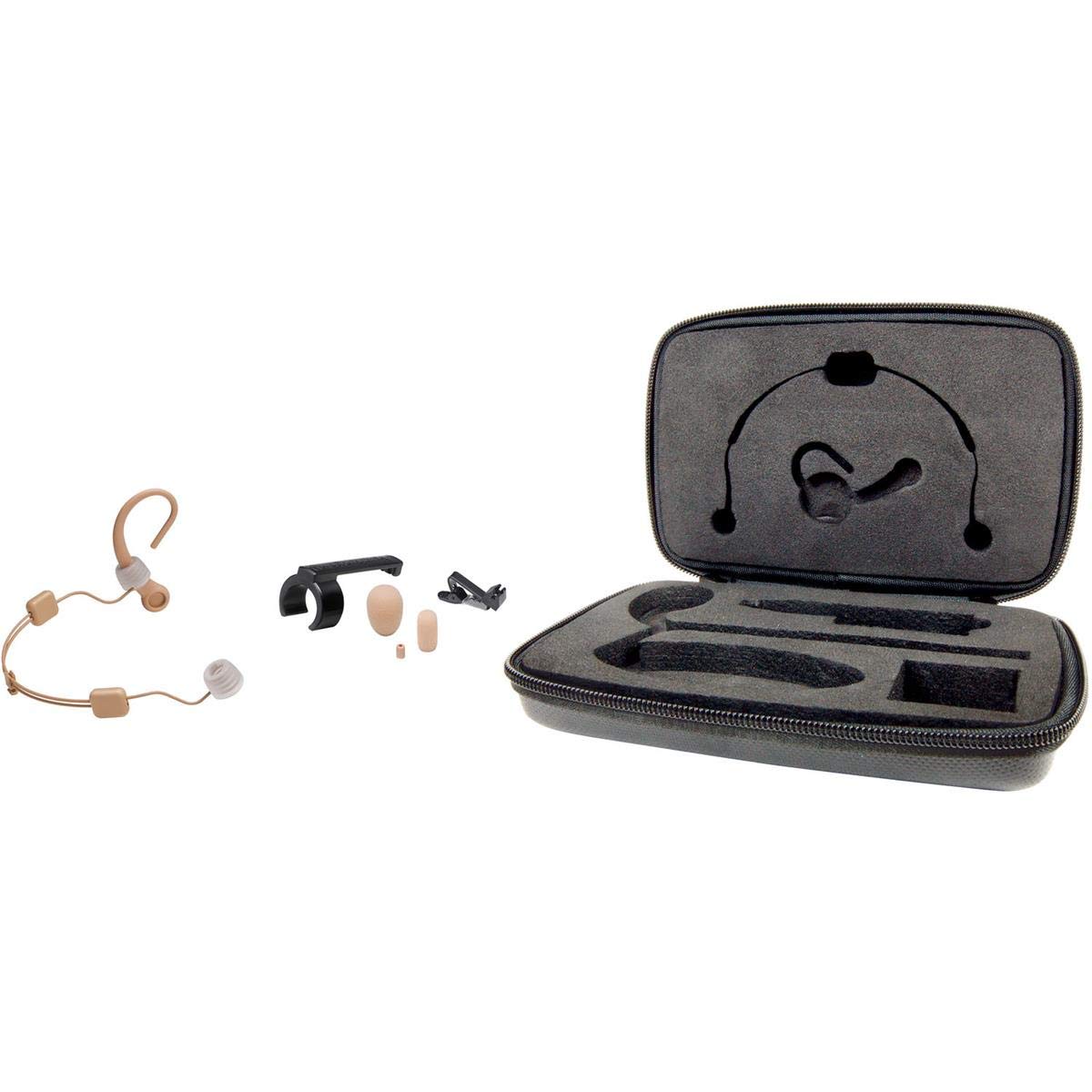

Package Contents:
- AT8545 power module (wired only).
- AT8464x dual-ear adapter kit.
- AT8440 cable clip.
- AT8157 windscreen.
- AT8171 windscreen.
- Two AT8156 element covers.
- Moisture guard.
- Belt clip (wired only).
- Carrying case.
Using the Audio-Technica BP892xcW-TH earset is a breeze. First, adjust the MicroSet to hook it securely behind your ear. Make sure it fits well, and if you wear glasses, the under-ear design should still be comfortable. If you're using the wired version, connect the detachable cable to the power module and the appropriate device. The power module's high-pass filter can be used to improve sound pickup.
When using the earset on stage or in a conference call, speak clearly into the microphone. The omnidirectional condenser capsule will pick up your voice clearly.
Here are some things to keep in mind. Don't expose the earset to extreme temperatures or humidity. If you're using the wireless version, make sure the battery has enough power. When handling the cable, be gentle to avoid damage.
For maintenance, clean the microphone and other parts regularly. Use a soft, dry cloth to wipe them down. If you need to replace the cable, it's easy to do since it's detachable and field-replaceable. Keep the included windscreen and element covers clean to maintain good sound quality. Store the earset in the carrying case when not in use to protect it.
