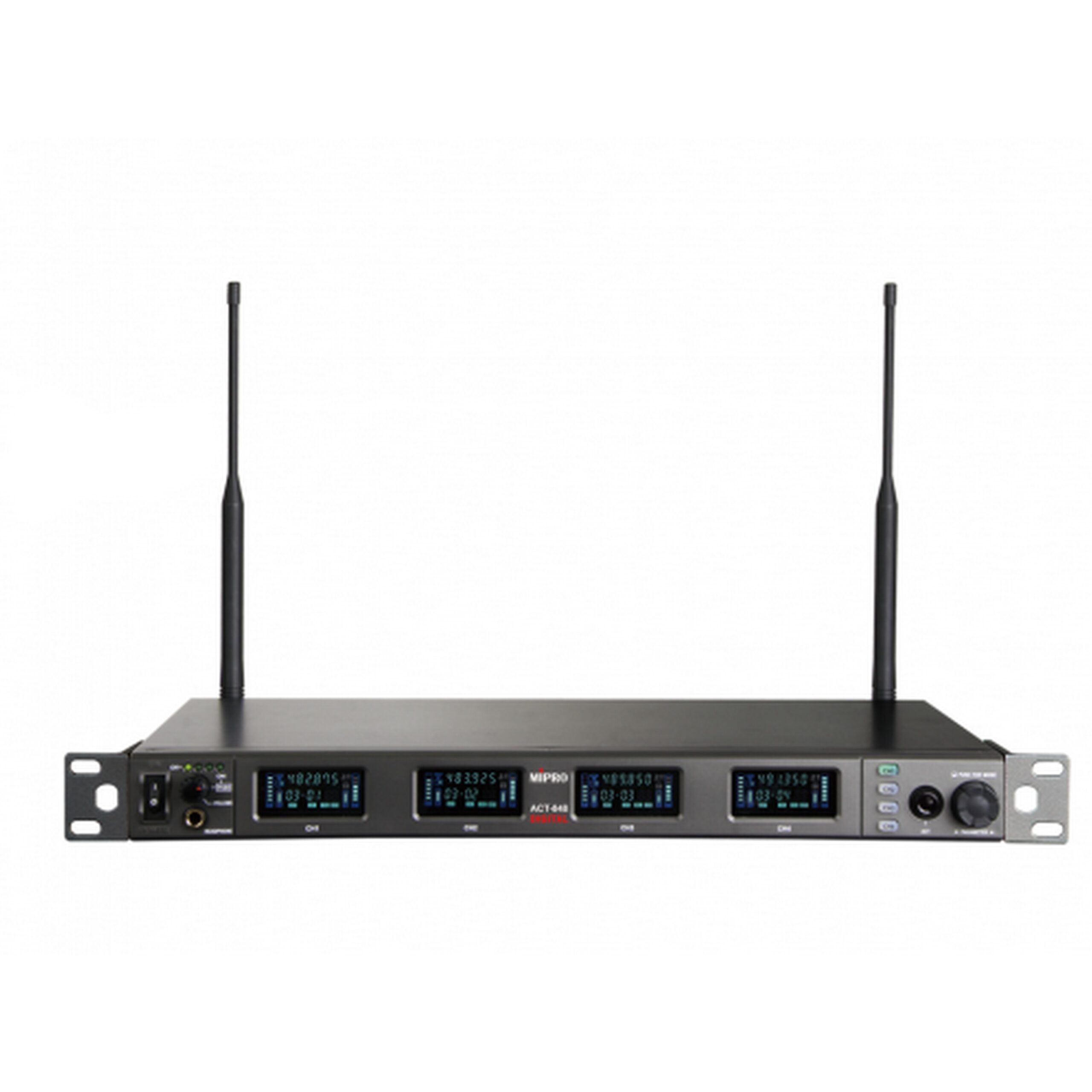

MIPRO ACT-848 1U Quad-Channel UHF Wideband Digital Receiver with Dante, 5E

The MiPro ACT-848 is a top - notch 1U Quad - Channel UHF Wideband Digital Receiver with Dante and 5E support. It features a 1U metal chassis with a new VFD screen, monitor headphone jack, rotary control knob, and buttons on the front, and a new AES/EBU digital output plus optional Dante or AVB interface on the rear. The operation and display mode match other series for easy use. It has a 72 MHz bandwidth, greatly improving the receiving range and increasing interference - free compatible channels. Digital diversity receiving ensures excellent sound quality regardless of distance. With 256 - bit encryption, it prevents unauthorized listening. The MIPRO Auto Scan and ACT function quickly syncs the transmitter's frequency to the receiver. There are 7 preset groups with 224 pre - saved channels, offering flexible channel selection. Each channel has separate AF signal output with switchable levels to keep the microphone distortion - free. The proprietary DSP audio processor and A/D converter deliver sound quality close to a wired system. The antenna TNC female connectors enhance receiving range and signal stability. You can use the optional MIPRO RCS2.Net software for real - time network remote - control of up to 64 channels and the FSA compatible channels calculator software to manually set channels. It runs on an external 100 - 240V AC switching power supply and is designed and made in Taiwan for high quality. Technical specs include a 19” 1U metal chassis, a new color VFD display, a frequency range of 480 - 544 MHz (5E) or 540 - 604 MHz (5F), 72 MHz bandwidth, and more.

Using the MiPro ACT - 848 is quite straightforward. First, connect the external 100 - 240V AC switching power supply to get it powered up. Then, attach the detachable antenna to the 50Ω TNC female connector to ensure good signal reception. If you want to use network remote - control, install the optional MIPRO RCS2.Net software. When setting up channels, you can use the MIPRO Auto Scan and ACT function for quick frequency sync, or manually set channels with the FSA compatible channels calculator software. Remember to set the appropriate output level for each channel to avoid distortion. For maintenance, keep the receiver in a dry and clean place. Wipe it gently with a soft cloth if it gets dirty. Avoid exposing it to extreme temperatures or humidity. If you have any issues, refer to the technical specifications provided in the product description to troubleshoot.
