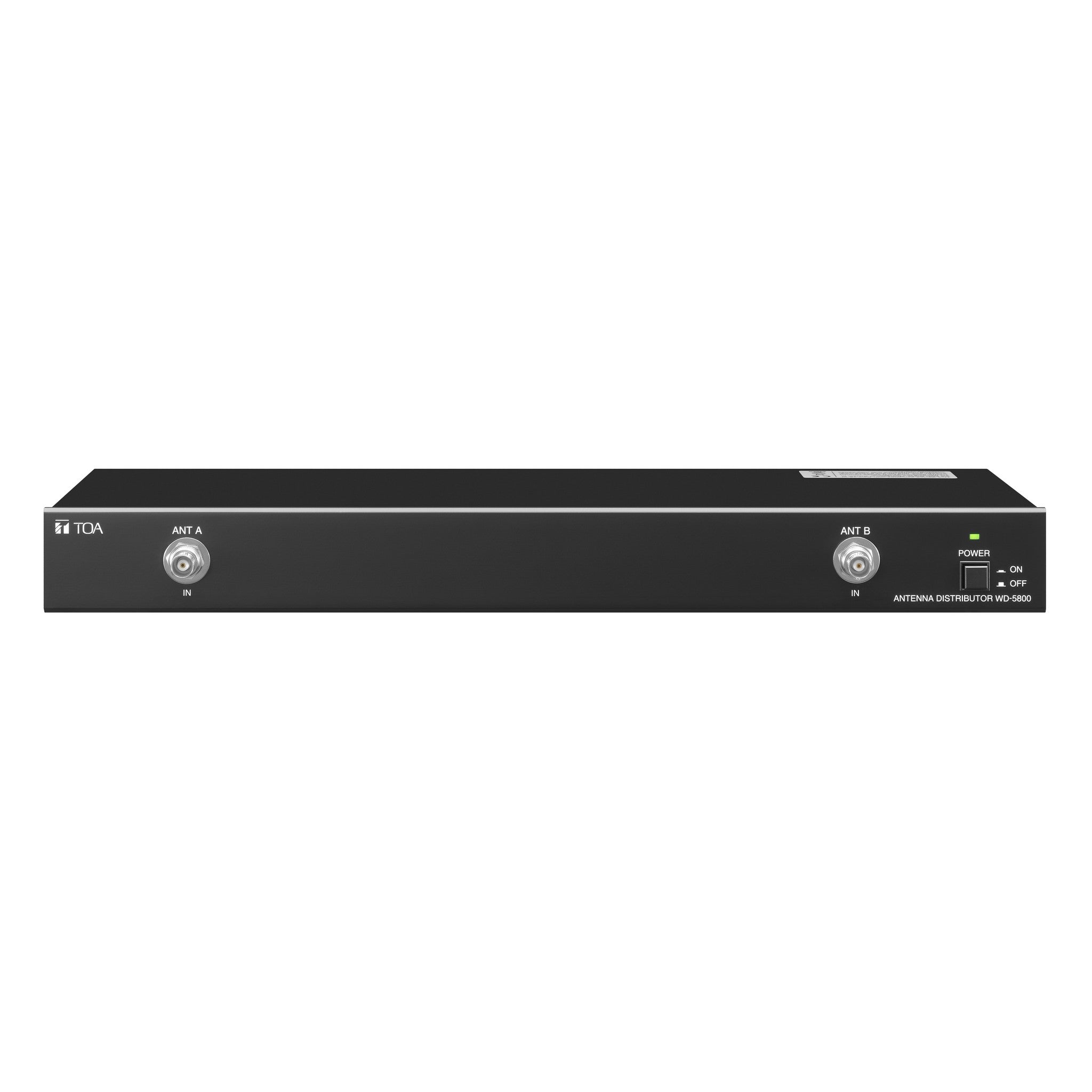

TOA Electronics WD-5800 VHF/UHF Wireless Antenna Distributor

The TOA Electronics WD - 5800 is a top - notch wireless antenna distributor for VHF/UHF band systems. It features two distribution channels that mix and distribute two input signals to four outputs. With four DC power distribution outputs, it's a highly functional device. It has a wide frequency range of VHF/UHF. The antenna input offers 2 inputs per channel (1 front, 1 rear) with 75 Ω and BNC connectors, and it provides phantom power for the antenna. The outputs are also 75 Ω BNC. The power source is AC mains with a supplied AC adapter, consuming 25 W or less. The unit can operate in temperatures from - 10°C to + 50°C and humidity from 30% to 85% RH. It has a sleek finish with an aluminum panel and steel case, both painted black. Dimensions are 420 (W) x 44 (H) x 214 (D) mm and it weighs 2 kg. Accessories include an AC adapter, power cord, DC cables, and rubber feet. An optional rack - mounting bracket (MB - 15B) is also available.

Using the TOA Electronics WD - 5800 is easy. First, connect the AC adapter to the unit and plug it into a power outlet. Make sure to use the supplied AC adapter as the unit's output voltage depends on it. Then, connect your VHF/UHF antennas to the input connectors, which are located both at the front and rear of the unit. You'll get four output connections to distribute the signals. Regarding the DC power, you can use the four DC power outputs, each providing 12 V DC/250 mA. As for temperature, keep the unit in an environment between - 10°C and + 50°C, and humidity should be between 30% and 85% without condensation. To maintain the unit, clean it gently with a dry cloth. If you want to mount it on a rack, you can use the optional MB - 15B rack - mounting bracket.
