Product Detail

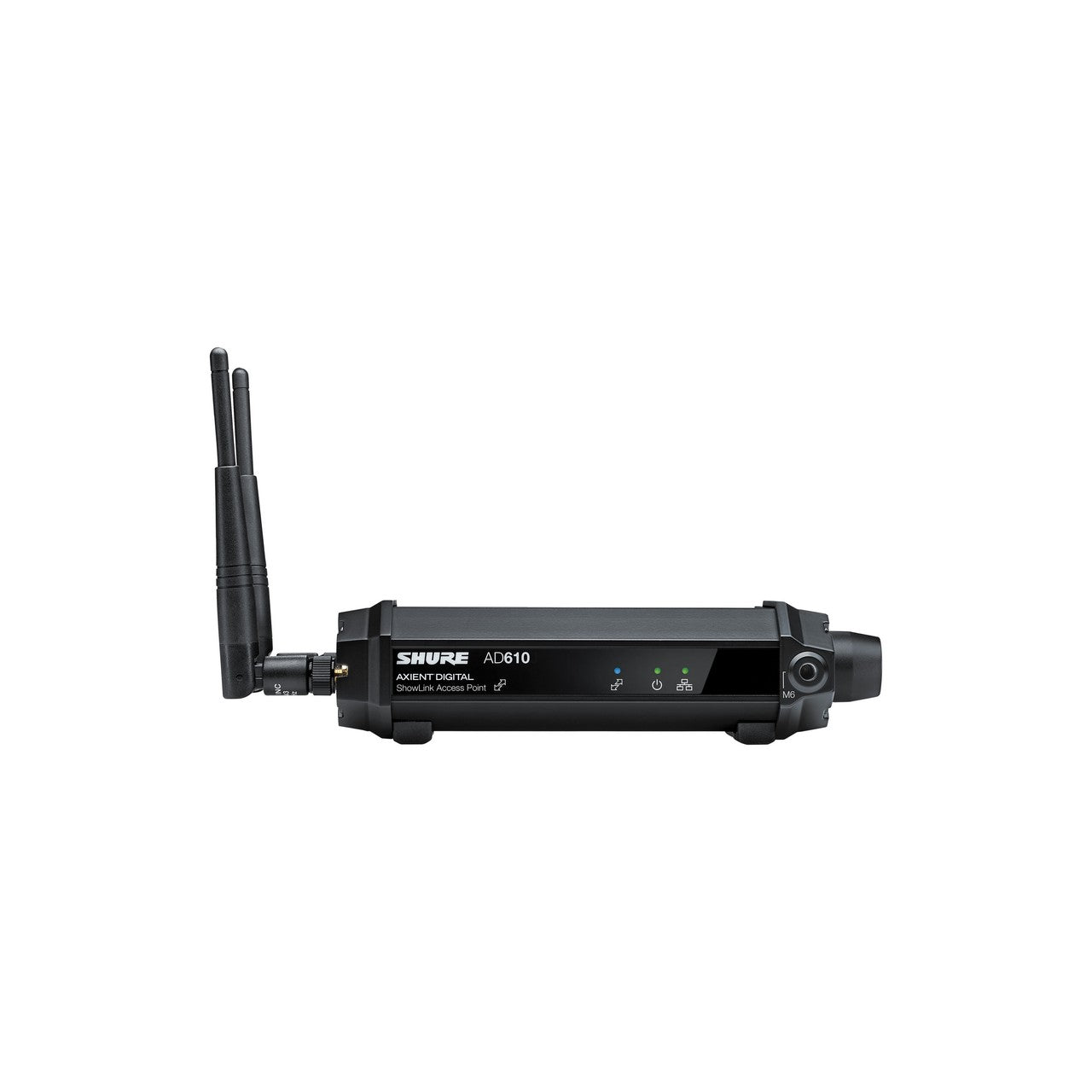

Introducing the Shure AD610 Wireless ShowLink Access Point, a game - changer for seamless wireless coordination of Axient transmitters and receivers. It creates a reliable ShowLink wireless connection between linked transmitters and receivers. This connection gives you amazing remote control and monitoring abilities, letting you easily manage clean and usable frequencies, no matter what the RF environment is like. With the AD610, you can remotely control all ShowLink - enabled Axient transmitters, such as those in the ADX and AXT series. Using 2.4 GHz (IEEE 802.15.4) wireless communication, you can comprehensively manage transmitter parameters right from the receiver or with Wireless Workbench. You can make parameter changes like adjusting gain or changing frequencies without disturbing the performer, ensuring a perfect performance. You can expand your ShowLink network by adding multiple AD610 access points to support more transmitters or increase the operational range. This versatile access point has true diversity antenna inputs and mounting points suitable for 1/4'-20 and M6 x 1.0 thread, making it adaptable to any setup. Key features include a wireless connection between transmitters and receivers, real - time remote control of up to 24 transmitters, ability to adjust gain, change frequencies and mute signals via ShowLink, a strong 2.4GHz connection with a true diversity antenna, and automatic channel selection for the best 2.4GHz channel. Specifications cover antenna type, capacity, mounting type, temperature ranges, dimensions, weight, housing, power requirements, ingress protection rating, network type, frequency range, RF output power, working range, connectors, impedance, scanner RF sensitivity, network interface, and network addressing capability. The package includes a WA371 wireless microphone clip, a C825 shielded 25 - foot Ethernet cable, and a 31A1856 Euro thread adapter for WA371.
Using the Shure AD610 Wireless ShowLink Access Point is a breeze. First, set it up in your desired location. You can use the provided WA371 wireless microphone clip to mount it on a microphone stand or use the 1/4 - 20 thread mount. Connect it to your network using the C825 shielded 25 - foot Ethernet cable. Once connected, it will establish a ShowLink connection with your Axient transmitters and receivers. You can then use the remote control feature from the receiver or with the help of Wireless Workbench to manage transmitter parameters like gain, frequency, and signal muting. When using it, make sure the operating temperature is between -18°C (0°F) and 60°C (140°F). For storage, keep it in a place where the temperature is between -29°C (-20°F) and 74°C (165°F). If you're using Power over Ethernet (PoE), ensure it's Class 1: 36 to 57 V DC/V AC. If PoE is unavailable, use the external power supply of 15 V DC (600 mA). To maintain it, keep it clean and protected from dust and moisture as it has an IPX3 ingress protection rating. Periodically check the connections and the antenna for any signs of damage.
