Product Detail

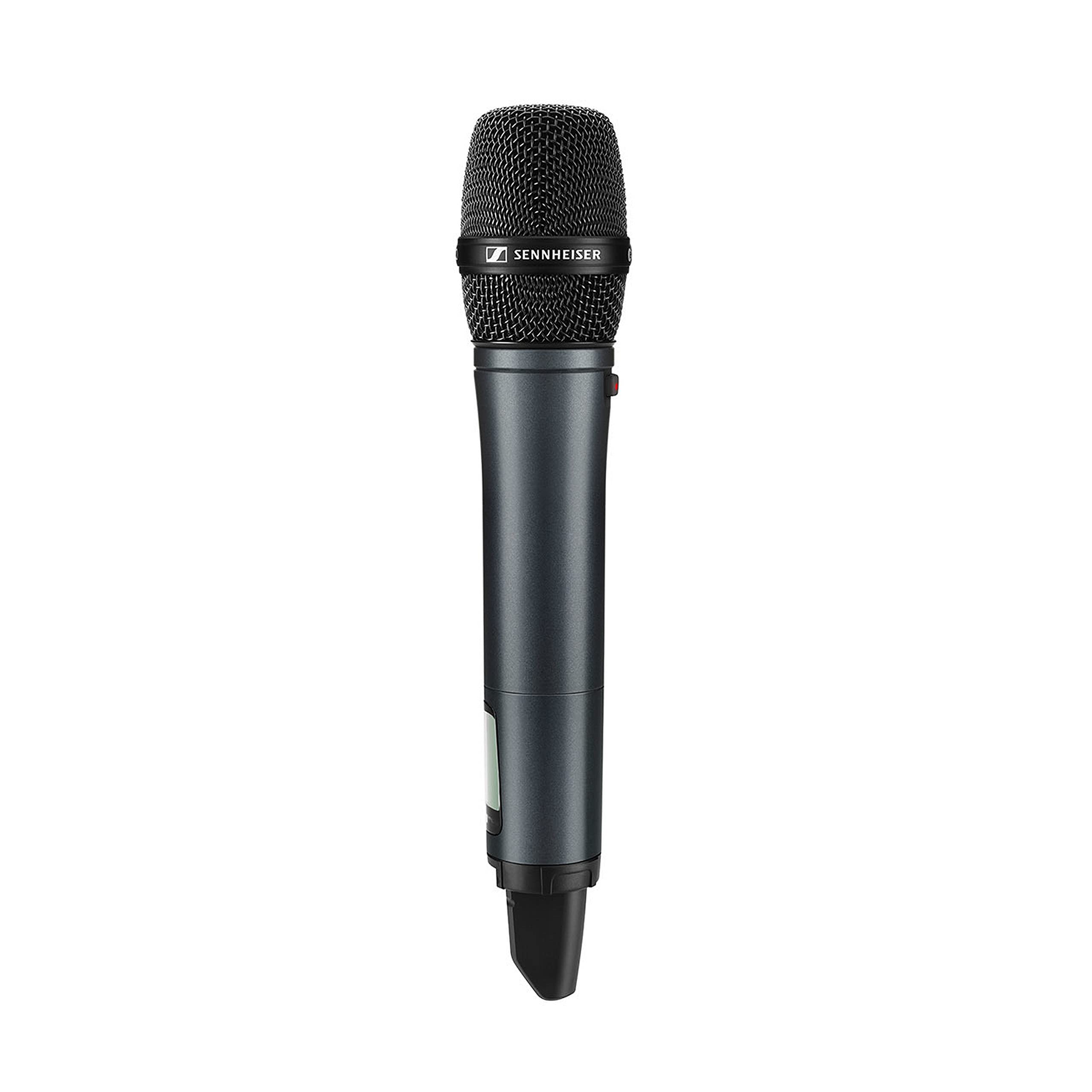

The Sennheiser SKM 100-835 G4-S-A1 Handheld Transmitter is a top - notch audio solution for professionals. It comes with a handy mute switch and the excellent MMD 835 - 1 BK Capsule, delivering outstanding audio quality. Part of the well - known evolution wireless G4 100 Series, it operates in the 470 - 516 MHz frequency range. Housed in a light - weight aluminum case, it has a robust and ergonomic design. Whether you're on stage, presenting, or working as an audio engineer, this transmitter ensures your voice is clear and consistent.
Using infrared technology, it offers easy and flexible wireless synchronization between the transmitter and receiver. The fast frequency allocation lets you link up to 12 receivers without a hitch, perfect for tough environments. With up to 20 compatible channels and a transmission range of up to 100 meters (300 feet), it performs reliably over long distances. The high RF output power, adjustable according to country - specific rules (up to 30 mW), makes it a great choice for various settings.
The MMD 835 - 1 BK Capsule provides impeccable audio clarity. The integrated mute switch gives you instant control over your audio. With a bandwidth of up to 42 MHz and 1680 selectable frequencies in a stable UHF range, it operates without interference, making it a must - have for those who need high - quality wireless audio.
**Key Features**:
- Easy wireless sync via infrared
- Fast frequency allocation for up to 12 receivers
- Up to 20 compatible channels
- 42 MHz bandwidth with 1680 selectable frequencies
- 100 - meter (300 - foot) transmission range
- High RF output power (up to 30 mW)
- MMD 835 - 1 BK Capsule for great sound
- Lightweight aluminum housing
- Integrated mute switch
**Specifications**:
- Frequency range: 470 - 516 MHz (A1 Band)
- Dimensions: Approx. Ø 50 x 265 mm
- Compander: Sennheiser HDX
- THD, total harmonic distortion: ≤ 0.9%
- Weight (incl. batteries): approx. 450 g
- Signal - to - noise ratio: ≥ 110 dBA
- RF output power: Max. 30 mW
- Switching bandwidth: up to 42 MHz
- Peak deviation: ±48 kHz
- Nominal deviation: ±24 kHz
- Operating time: Typically 8 hours
- Modulation: Wideband FM
- Power supply: 2 AA batteries, 1.5 V or BA 2015 accupack
- Current consumption: typ. 180 mA
- Input impedance: 40 kΩ
- Max. Input voltage: 3 Veff
- Powering: 3 V battery / 2.4 V rechargeable battery
- Transmission frequency: Max. 1680 transmitting frequencies, adjustable in 25 kHz steps
- AF frequency response: 80 - 18,000 Hz
- Temperature range: - 10 °C to +55 °C
- Frequency stability: ±15 ppm
**Package Contents**:
- Sennheiser SKM 100 - 835 G4 - S - A1 Handheld Transmitter
- MMD 835 - 1 BK Capsule
- 2 AA Batteries
- User Manual
Using the Sennheiser SKM 100-835 G4-S-A1 Handheld Transmitter is a breeze. First, insert 2 AA batteries or a BA 2015 accupack as the power source. Then, use the infrared technology to sync it with your receiver. This allows for easy and quick setup. You can also adjust the frequency easily, and link up to 12 receivers if needed.
When you're using it, keep in mind that the operating temperature range is from -10 °C to +55 °C. So, don't expose it to extreme temperatures. Also, make sure the transmitter is within the 100 - meter (300 - foot) transmission range for the best performance.
For maintenance, the lightweight aluminum housing is durable, but try to keep it away from scratches and bumps. If you're not using the transmitter for a long time, remove the batteries to avoid any damage from leakage. The integrated mute switch is a great feature, use it whenever you need to quickly cut off the audio. And remember, with up to 20 compatible channels and 1680 selectable frequencies, you can find the perfect setting for your needs.
