Product Detail

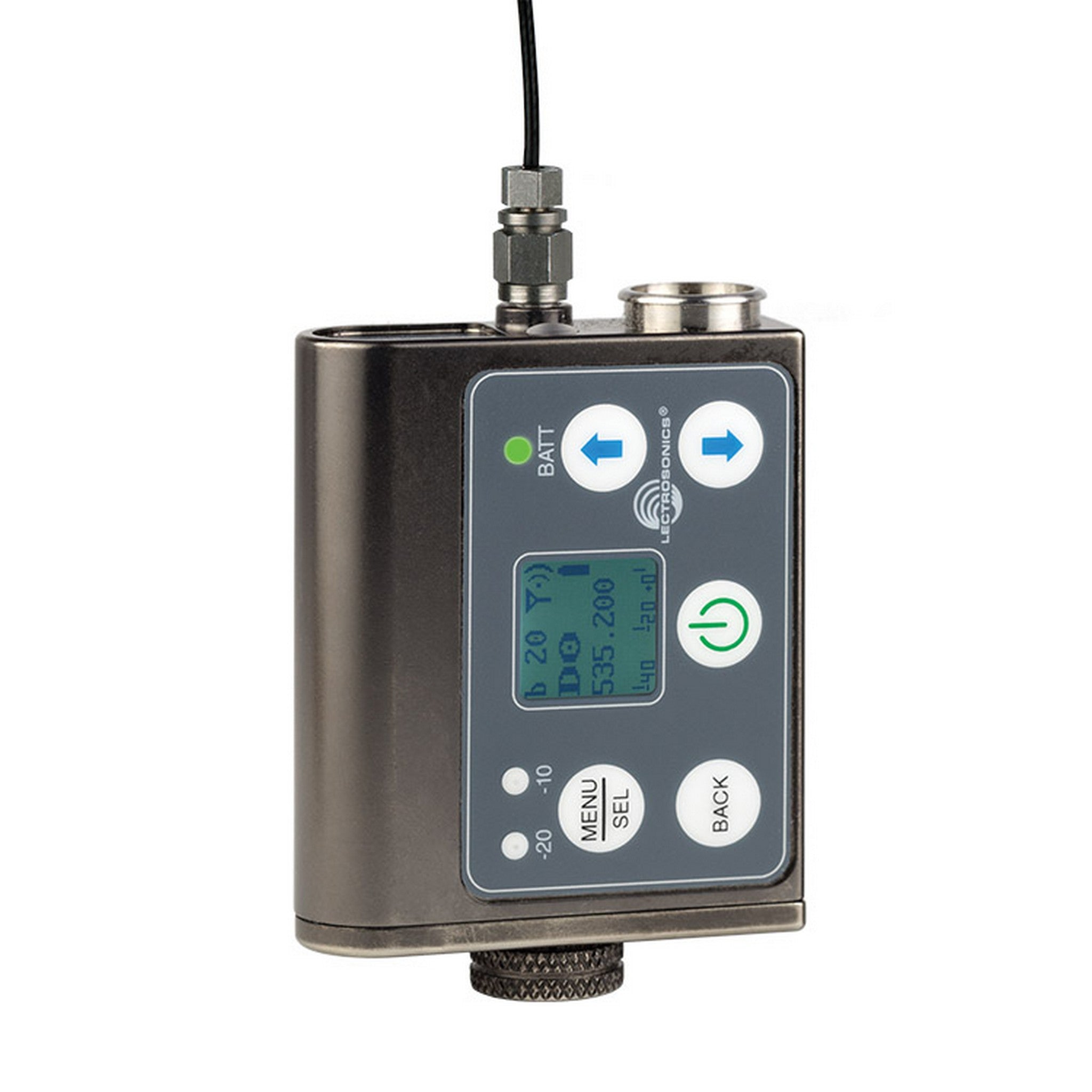

The Lectrosonics SMWB Miniature Wideband Transmitter, Model B1, is designed to meet various RF environments and applications. It offers selectable output power of 25, 50, and 100 mW (25 and 50 mW for export versions). Higher power output improves the operating range and provides a more secure link in high RF noise areas, without affecting battery life. You can set up and adjust the transmitter hands - free using audible tones. It can be put to sleep during setup to save battery, especially when hidden in costumes, and awakened for normal use when production starts. Key features include an ultra - lightweight, corrosion - resistant housing, water - resistant seals for damp environments, an LCD interface with a lockout option, programmable compatibility modes for different receivers, servo bias input circuitry, an IR port for fast setup, coverage of 3 frequency blocks, field firmware update via a Micro SD card reader, and the ability to function as a recorder on an internal microSDHC memory card. Technical specifications cover a wide range of details, such as operating frequencies, channel spacing, RF power output, and more.
Using the Lectrosonics SMWB Miniature Wideband Transmitter is a breeze. First, insert the recommended AA lithium disposable battery. Then, connect your audio source, like a dynamic mic, electret lavaliere mic, or line - level device, to the appropriate input jack. You can set up the transmitter hands - free using audible tones. If you need to save battery during setup, especially when the transmitter is hidden in costumes, put it to sleep. Just wake it up when production starts. When it comes to frequency settings, you can select the appropriate frequency block and channel spacing according to your needs. Adjust the input gain in 1 - dB increments over a 44 - dB range to get the best audio quality. You can also adjust the low - frequency audio roll - off for different audio content control. Maintenance is simple. Keep the transmitter clean and dry, especially if you use it in damp environments. If you need to update the firmware, use the Micro SD card reader. Remember to follow local regulations regarding RF use. Also, check the battery regularly, as a weak battery can affect performance. And when using it as a recorder, make sure the microSDHC memory card has enough storage space.
