Product Detail

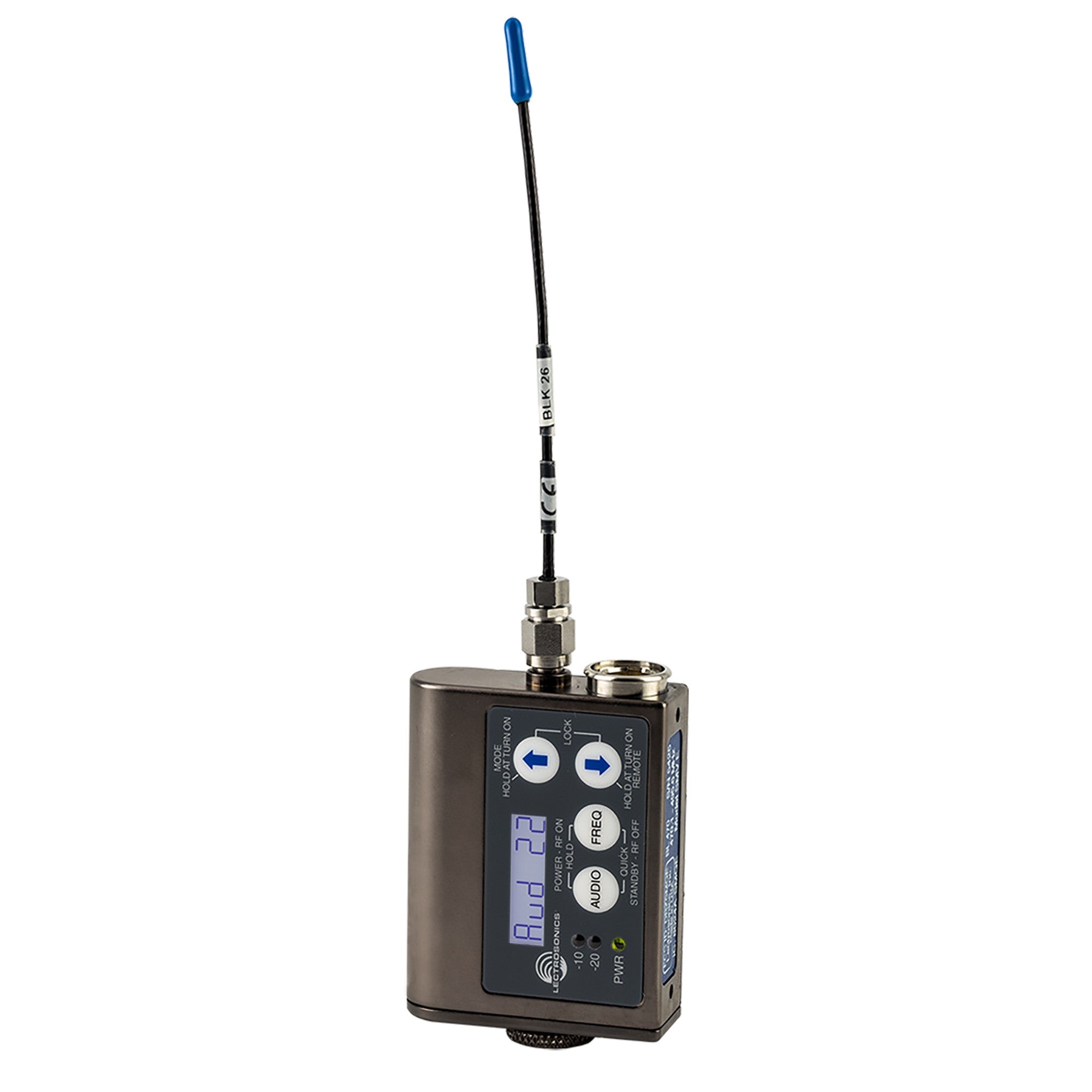

The Lectrosonics SMV Digital Hybrid Wireless UHF Beltpack Transmitter is a top - notch device. It meets the needs for extended operating range and long battery life. The 'V' series SM transmitters come with selectable output power, including a 50 mW option for certain theatrical uses. The input section has unique servo bias input circuitry with a TA5M jack, suitable for electret lavaliere mics, dynamic mics, or line - level signals. A DSP - controlled analog audio limiter offers over 30 dB of range for great overload protection. Key features include Digital Hybrid Wireless™ Technology, variable power output (50mW, 100mW, 250mW), a membrane switch control panel with an LCD display, 256 synthesized UHF frequencies, and a wide input dynamic range. Technical specs cover a wide range of frequencies in different blocks, selectable channel spacing, and more. It also has a splash - proof, machined aluminum housing with a non - corrosive finish. Included accessories are an AA Lithium Battery, foam insulating pads, a pouch, a mic connector kit, a belt clip, and a quick start guide.
Using the Lectrosonics SMV Beltpack Transmitter is straightforward. First, insert a 1.5 - Volt AA lithium battery. Then, connect your microphone or line - level source to the TA5F audio input jack. You can use the control panel with membrane switches to select the frequency, power output, and other settings. For frequency selection, there are multiple blocks available. Make sure to choose the appropriate channel spacing (25 or 100 kHz). When it comes to power output, you can select 50, 100, or 250 mW depending on your needs. For theatrical applications, the 50 mW option might be ideal. Be careful when handling the flexible, detachable steel cable antenna to avoid damage. As for maintenance, keep the transmitter in a dry place. If it gets dirty, use a soft, dry cloth to clean the exterior. Do not expose it to extreme temperatures or humidity. Replace the battery when the power starts to run low to ensure consistent performance. The included accessories like the foam pads and pouch can help protect the device during storage and transportation.
