Product Detail

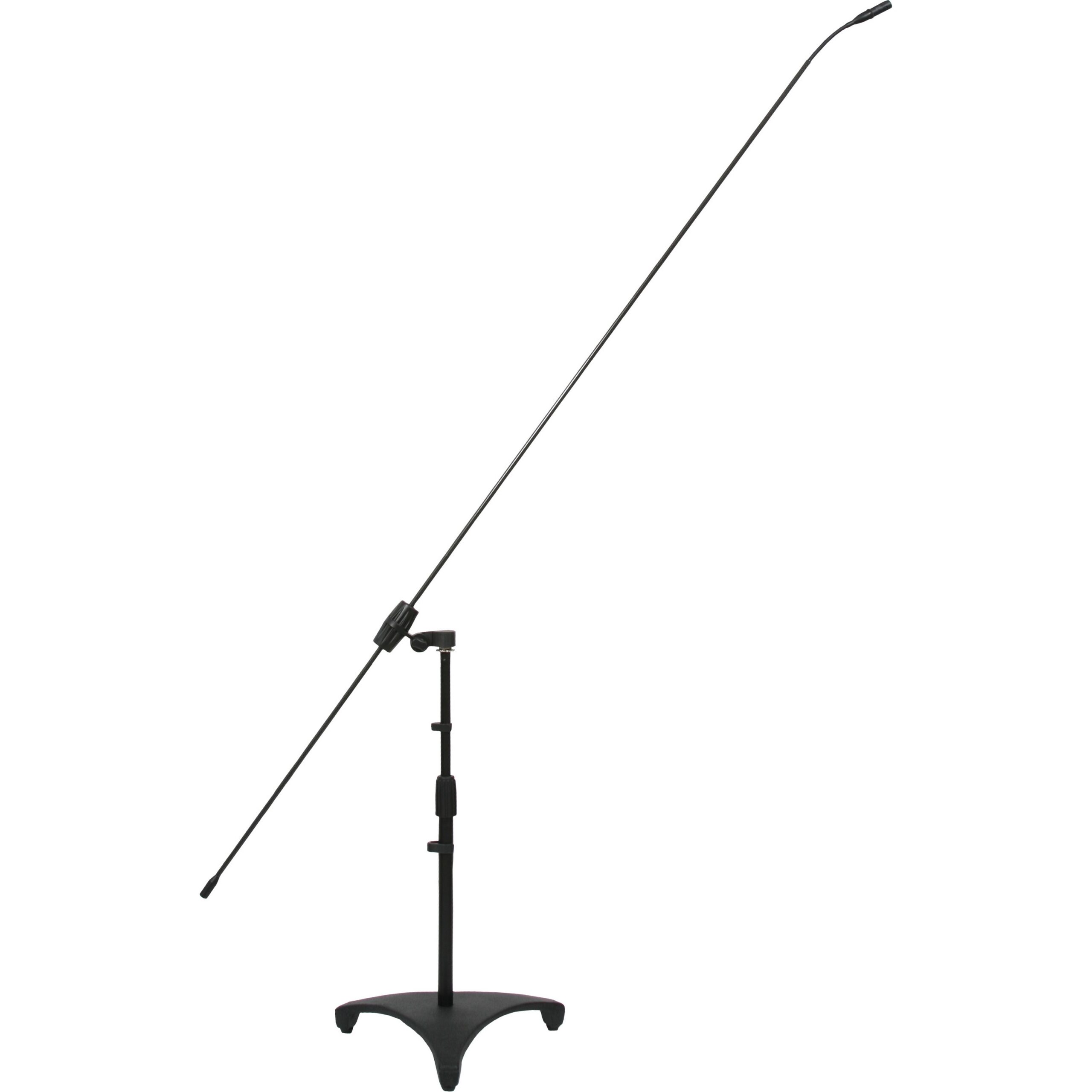

Galaxy Audio's CBM - 3 is an incredibly versatile microphone system. With its sleek design, it's perfect for choirs, presentations, orchestras, ensembles, plays, drum overheads, and ambient instrument or audience miking. The 57 - inch carbon boom microphone comes with three easily replaceable mic elements: Omni, Cardioid, and Super Cardioid. You can simply swap the elements to suit different performance needs. Its condenser elements offer clear, smooth, and well - defined sound. The cardioid polar pattern is a top choice as it can pick up the voices of up to 20 singers per mic. The mic end features a 2.5 - inch flexible gooseneck, allowing you to precisely aim the mic. Available in four models: CBM - 324 with a 24 - inch tall (14.5 to 24 - inch adjustable) mic stand, CBM - 362 with a 62 - inch tall (35 to 62 - inch adjustable) mic stand, and the Dual Boom models CBM - 324D & CBM - 362D with a Carbon Boom Microphone T - Bar. The back electret condenser microphone includes 3 interchangeable elements: Omni - Directional (ME3 - O), Cardioid (ME3 - C), and Super Cardioid (ME3 - S). Technical specs: Type - Back Electret Condenser; Boom length including Mic Capsule - 56.9 inches with a 2.5 - inch flexible gooseneck; Impedance - 200 ohms; Frequency Response - 15Hz to 18kHz; Sensitivity - - 36dB (15.8mV/Pa) 0dB = 1V, 1kHz; Polar Pattern - Cardioid, Supercardioid & Omnidirectional; Max SPL for 1% T.H.D. - 125dB; Connector - 3 pin mini XLR (M); Cable Length - 26.25 feet (8m); Cable Connector - Input: 3 pin mini - XLR (F), Output: 3 Pin XLR (Power Module); Power Supply - 9 - 48 VDC phantom power.
Using the Galaxy Audio CBM - 3 is a breeze. First, choose the right mic stand based on your needs. If you need a shorter one, go for the 24 - inch adjustable stand; for a taller one, pick the 62 - inch adjustable stand. Then, select the appropriate mic element. The Omni - Directional is great for capturing sound from all directions, the Cardioid is ideal for focusing on a specific area, and the Super Cardioid offers even more focused pickup. Once you've attached the element, use the flexible gooseneck to aim the mic exactly where you want it. When it comes to power, make sure you have a 9 - 48 VDC phantom power supply. Connect the cable to the mic and the power module. As for maintenance, keep the mic clean by gently wiping it with a soft cloth. Avoid exposing it to extreme temperatures or humidity. And when not in use, store it in a safe place to prevent any damage.
