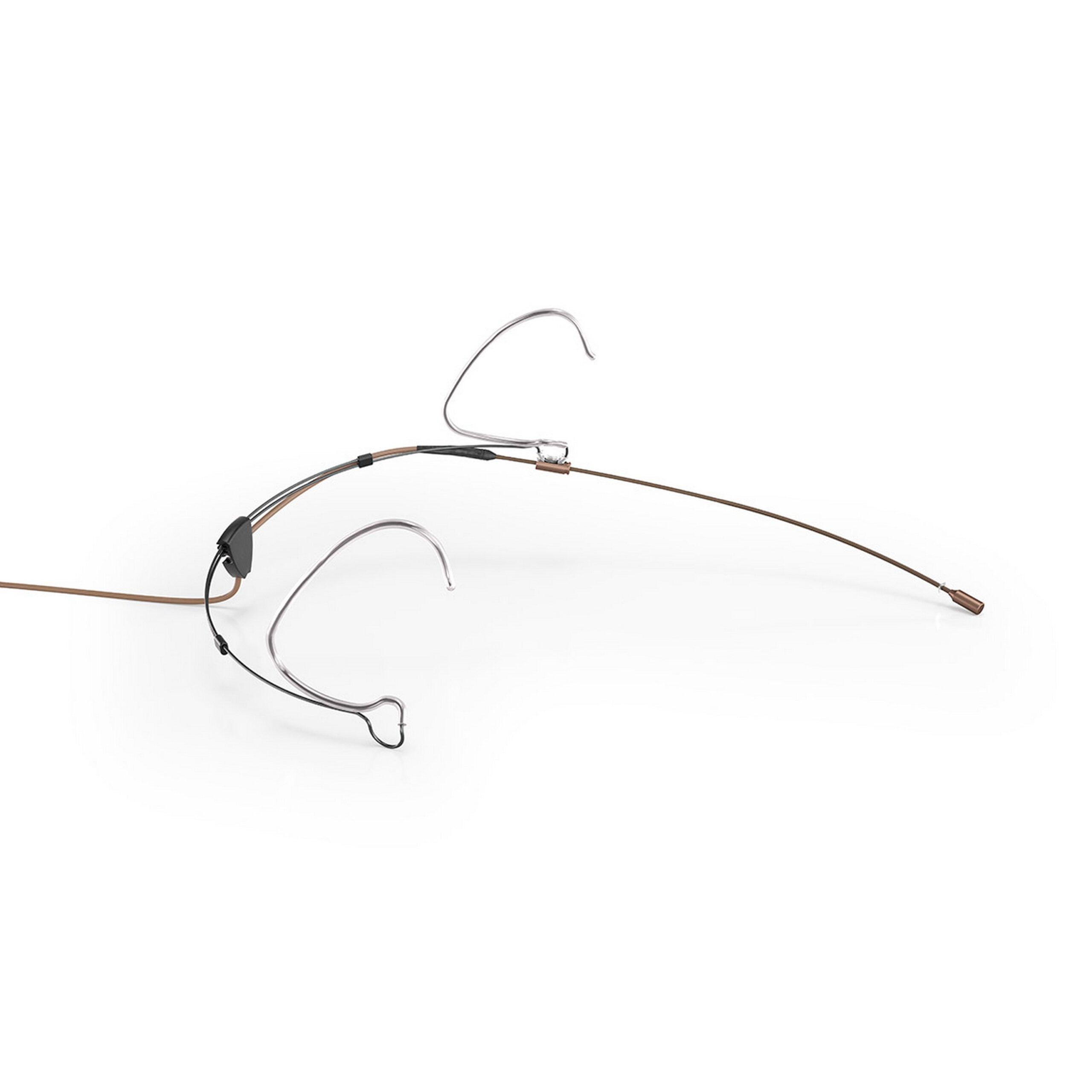

The DPA 6066-OC-R-C03 CORE Omni Headset Microphone in brown features a 3 mm (0.12 in) diameter capsule. Despite its small size, it packs the audio power of larger, award - winning DPA mics. It offers amazing clarity, consistency, and durability. With the newly shrunk CORE by DPA technology, you don't have to sacrifice sound for aesthetics.
Key Features:
- Utilizes amazing 3 mm CORE by DPA capsules technology.
- Delivers renowned DPA sound in a capsule that's 60% smaller.
- Has a one - size - fits - all headset that fits securely and comfortably.
- Comes with a 2 - way adjustable, non - reflective boom with a locking system.
- Features a unique, comfortable 3 - point gripping system above, below, and behind the ear.
- Equipped with new 90 cable management to guide the cable and reduce breaks.
Technical Specifications:
- Directional pattern: Omnidirectional
- Principle of operation: Pre - polarized condenser, Pressure
- Effective frequency response: 20 Hz - 20 kHz
- Frequency range, +/-2 dB: 40 Hz - 20 kHz with 4 dB soft boost at 8 - 20 kHz
- Sensitivity, nominal, +/-3 dB at 1 kHz: 6 mV/Pa; - 44 dB re. 1 V/Pa
- Equivalent noise level, A - weighted: Typ. 26 dB(A) re. 20 uPa (max. 28 dB(A))
- Distortion, THD < 1%: 125 dB SPL RMS, 128 dB SPL peak
- Dynamic range: Typ. 102 dB
- Max. SPL, THD 10%: 144 dB SPL peak
- Rated output impedance: From MicroDot: 30 - 40 OHM. From DAD6001 - BC: 100 OHM
- Cable drive capability: Up to 300 m (984 ft) with DAD6001 - BC XLR adapter
- Power supply (for full performance): Min. 5 V to max. 10 V through DPA adapter for wireless systems. With DAD6001 - BC: 48 V phantom power +/-4 V for full performance. Works from 12V
- Weight: 11 g (0.40 oz) incl. Cable and MicroDot connector
- Microphone head size (h x w x d): 3.4 / 8.9 mm (0.13 / 0.35 in)
- Capsule diameter: 3 mm (0.12 in)
- Cable length: 1.3 m (4.3 ft)
- Polarity: Positively increasing sound pressure produces positive going voltage on MicroDot pin
- Temperature range: - 40C to 45C (- 40F to 113F)
- Relative humidity (RH): Up to 90%
Using your DPA 6066 CORE Omnidirectional Headset Microphone is a breeze. First, adjust the headset to fit your head comfortably using the one - size - fits - all design and the 3 - point gripping system. You can position the 2 - way adjustable boom to the best position for your voice. Then, connect the cable to your audio device, making sure to use the appropriate adapter if needed.
When it comes to power, if you're using it with a wireless system, make sure you have a power supply between 5V and 10V through the DPA adapter. With the DAD6001 - BC, you can use 48V phantom power for full performance, but it also works from 12V.
Keep in mind that the microphone works well in a temperature range from - 40C to 45C and can handle relative humidity up to 90%. Avoid exposing it to extreme conditions.
For maintenance, gently clean the microphone head and cable regularly. Check the cable for any signs of wear, especially around the connectors. Thanks to the new 90 cable management, cable breaks are minimized, but still be careful when handling the cable. And always store your microphone in a dry and safe place when not in use.
