Product Detail

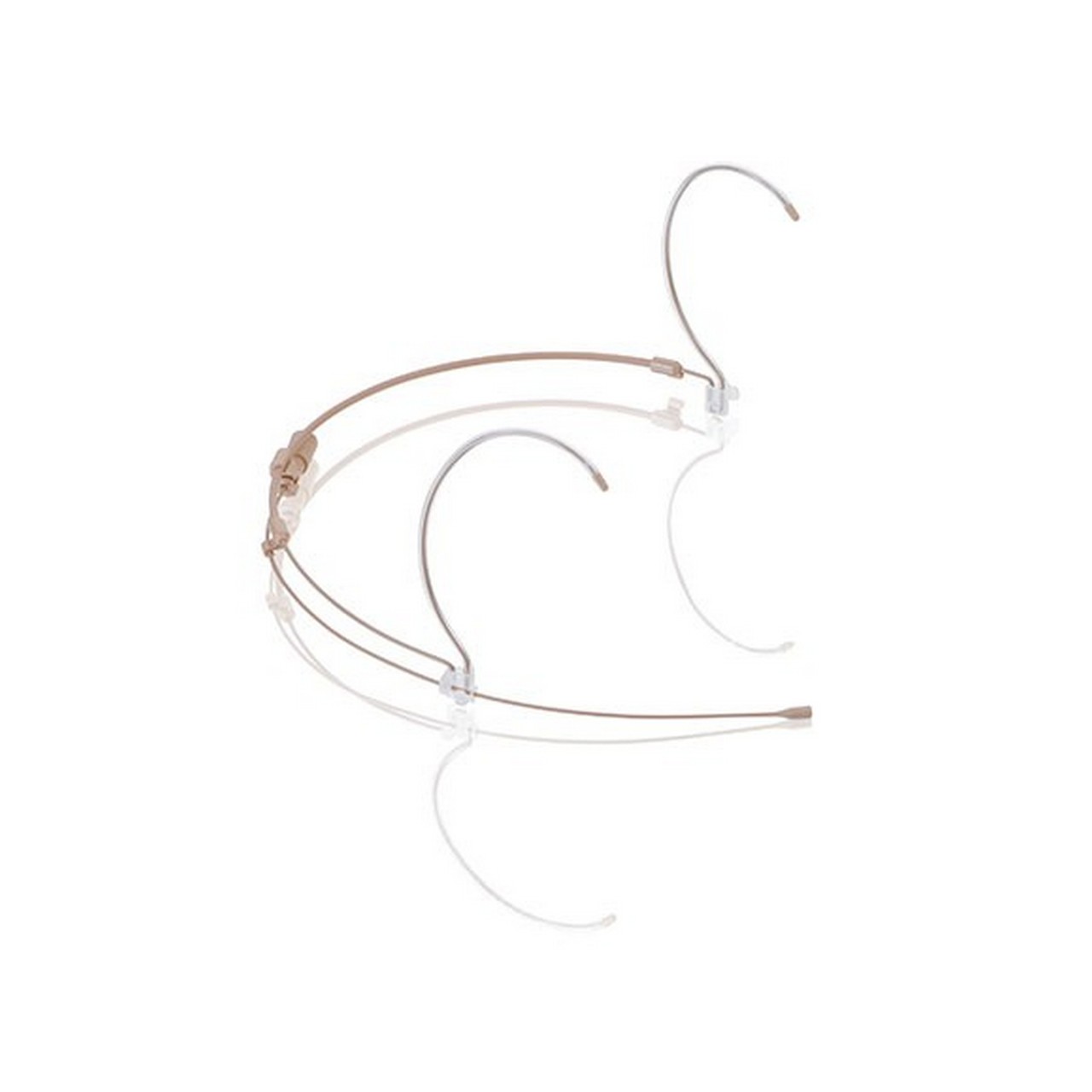

The Tan Countryman H6DW5TBS Directional H6 Headset Microphone comes with a Beyer Lemo 4 Pin Type S Connector. It's marked as H6DW5TBS, Beyer, with model compatibility for TS - 170, TS - 170p, TS - 190. The (D) indicates Directional, (W5) means standard gain for general speaking, and (T) stands for the Tan color. This microphone is a game - changer. It's the world's lowest - profile headset mic. It combines the transparent sound quality and water - resistant capsule design of the E6 Earset with a comfy, lightweight, and easily adjustable headframe. It's ideal for houses of worship, theaters, broadcasters, and presenters. Technical details include: Frequency Response - Omnidirectional ranges from 20 Hz to 20 kHz, and Directional from 30 Hz to 15 kHz. Operating Current is 500 uA, with an Operating Voltage of 1 to 2 Volts. It has multiple Power Supply Voltage options like +3V with 2.7 kOhm load, +5V with 6.8 kOhm load, and +9V with 15 kOhm load. It weighs just 0.07 oz (2 g). Sensitivity varies based on omnidirectional or directional mode and band type. Equivalent Acoustic Noise, Overload Sound Level also differ by mode and band. The cable is 5 Feet long. What's in the box? You'll get an H6 Headset Microphone, an optional H6 Headset Cable, black and white single - tie cable clips, omnidirectional and directional protective caps, a windscreen, and a carrying case.
Using your Tan Countryman H6DW5TBS Directional H6 Headset Microphone is easy. First, adjust the headframe to fit your head comfortably. Make sure the microphone is positioned close to your mouth for the best sound capture. Connect it to your audio device using the Beyer Lemo 4 Pin Type S Connector. When it comes to power, choose the appropriate power supply voltage according to the load requirements mentioned in the technical specs. As for maintenance, keep the microphone clean. You can use a soft, dry cloth to wipe it down regularly. Avoid exposing it to excessive moisture as the capsule is water - resistant but not waterproof. Store it in the provided carrying case when not in use to protect it from damage. If you're using the optional cable, make sure it's properly connected and not tangled. And always check the protective caps are in place to ensure optimal performance.
